JGB37-520 Miniature High Torque Gearbox 6V/12V/24V 7RPM~960RPM High Power Micro Speed Reversible Electric Gear DC Brush Motor
JGB37-520 Miniature High Torque Gearbox 6V/12V/24V 7RPM~960RPM High Power Micro Speed Reversible Electric Gear DC Brush Motor
Couldn't load pickup availability

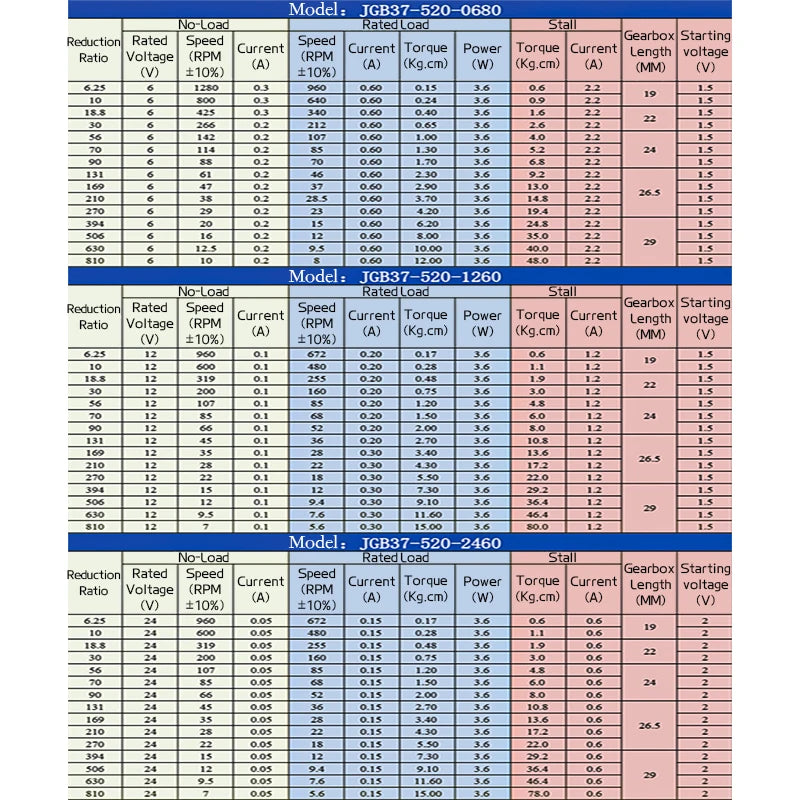

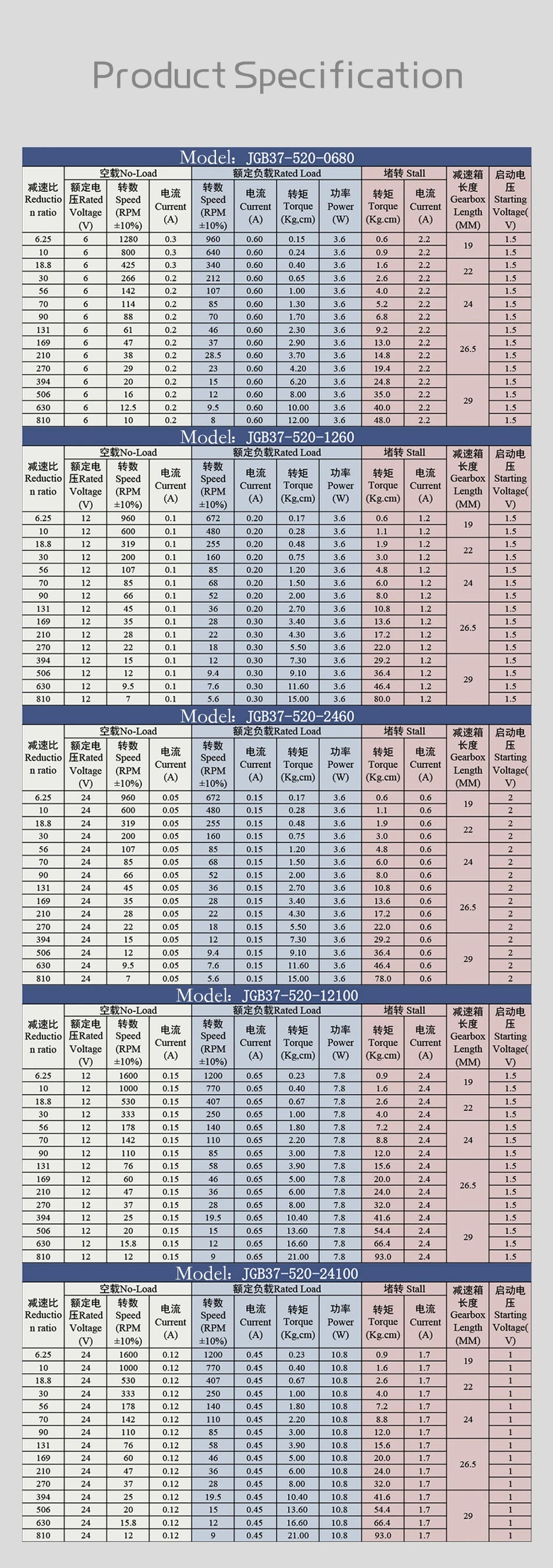

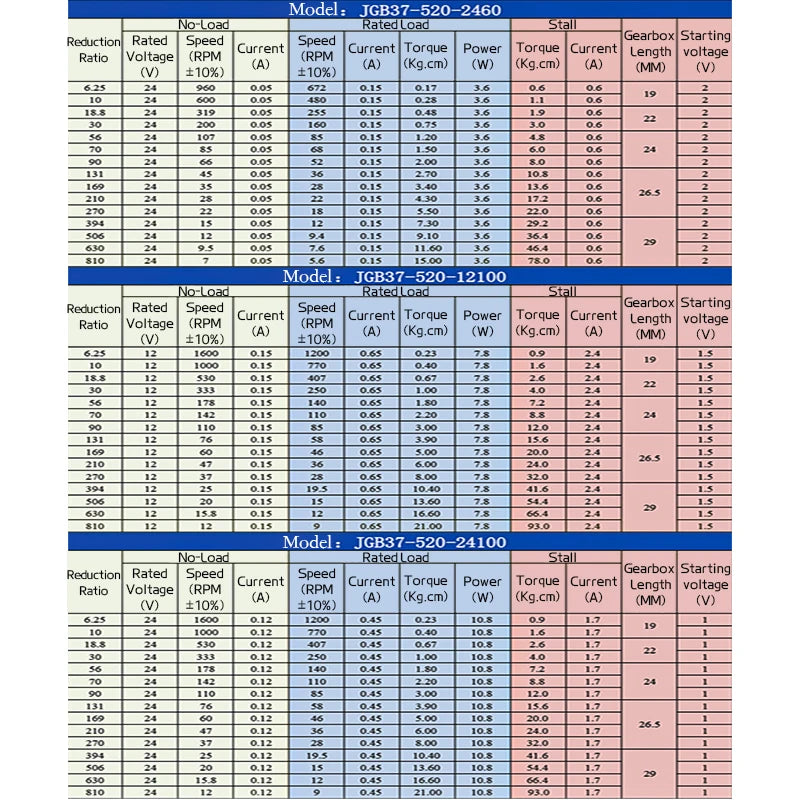

SPECIFICATIONS
Application Scenario: Medical Equipment Office Supplies Security Automation

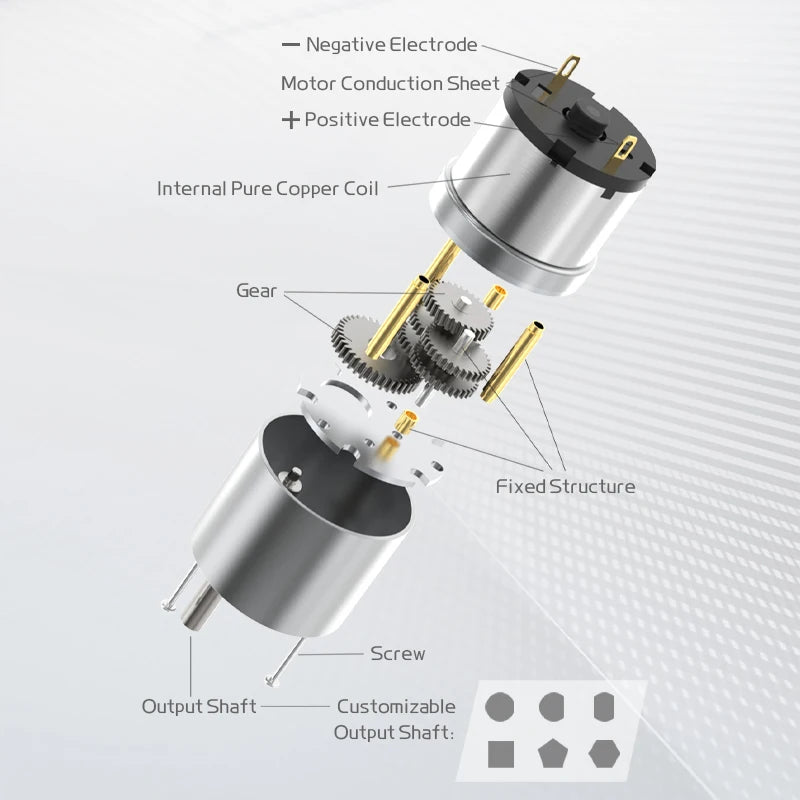

All Metal Gears: Increase Motor Torque, Corrosion Resistance, Not Easy To Rust, Durable, Fast Heat Dissipation
D Shape - Output Shaft: Increase The Force Friction, Make The Transmission More Stable And The Connection Is Fixed
High Quality Pure Copper Coil: Good Electrical Conductivity, Wear Resistance And Durability, High Temperature Resistance, Stable Speed
Powerful Motor: Forward And Reverse Rotation, Adjustable Speed
Customizable Shaft: Customizable Shaft
Brand Name: ZENG WHCD
Model Number: JGB37-520

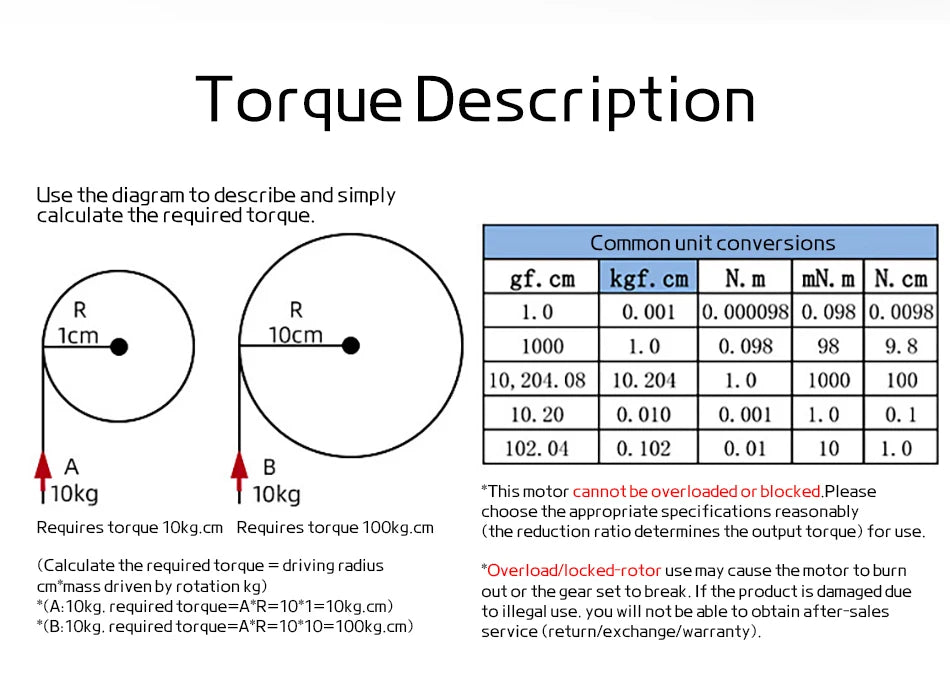

Torque: 21KG.CM
Output Power: 3.6W~10.8W
Continuous Current(A): 0.05A~0.3A
Hign-concerned Chemical: None
Usage: FAN
Usage: Home Appliance
Protect Feature: Drip-proof
Color: Silver
Commutation: Brush
Efficiency: IE 1
Construction: Permanent Magnet
Origin: Mainland China
Certification: CCC
Certification: ce
Type: Micro Motor
Choice: yes
semi_Choice: yes
【Factory Direct Sales/Source Factory】
We have a professional production team and professional advanced equipment to develop our own motors, which can be customized or mass produced.
【Quality】
Our professional equipment can make the quality and life of the motor very good, and we will never cut corners to save costs. The life of our motor can be longer than the life of ordinary motors.
【Delivery Time】
After the customer places an order, it will be sent out on time in the afternoon of the next day, China time, without any delay.
【Pre-Sale/After-Sale Service】
If you have any questions or doubts, you can contact our customer service. They will patiently answer any of your questions and reply to customers online 24 hours a day.
Customized / Mass Contact us
Email : 2604313466@qq.com
Mobile Phone Nmber : +86 15019296814
WeChat : WEIHENGKEJI88
