SPECIFICATIONS

Brand Name: BQCC

Origin: Mainland China

Display Size: 10.25 Inch

Hign-concerned Chemical: None

Resolution: 1600x600

OSD Language: English

Material Type: plastic and metal

Voltage: 12V

Certification: CE

Special Features: Radio Tuner

Item Size: 245X97X25mm

Model Name: B5313

Radio Response Bandwidth: 88.60-95.70MHz

Item Weight: 0.98

Placement: In-Dash

Model: B5303

Type: Portable car MP5

System: Allwinner melis system

Software solutions: F133

Radio transmission frequency: 88.60/89.20/89.50/89.80/91.50/91.80/93/.00/93.60/93.90/94.50/95.10/95.70MHz

Radio transmitter IC: AB5301B

Power amplifier IC: CS8571E

Output power: built-in 1W speaker

Working voltage: 12~30V

Working temperature: -10~60℃

Bluetooth version: version 5.0

wifi frequency: 2.4G/5G dual-band

CPU: F133

Running memory: 1Gbit DRAM

Display resolution: 1600x600

Screen size: 10.26 inches HD

Installation size: 132x85MM

Case size: 245x97MM

Host depth: 25MM

Color box size: 275x127x97mm

Full box size: 560x315x270mm

Number of units per box: 12 units

Single unit weight: 0.98KG

Net weight of the whole box: 11.76KG

Gross weight of the whole box: 12.70KG

Mobile Internet: support

Reversing image: support

Play video warning: supported

Driving recorder: supported

Built-in speaker: support

USB interface: USB 2.0

TF card: supported

Audio output: support

Reverse video input: support

Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV

Video format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT

Image format: JPEG/PNG/BMP/GIF/TIFF

language parameters: English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean, Thai

Factory set password: 113266

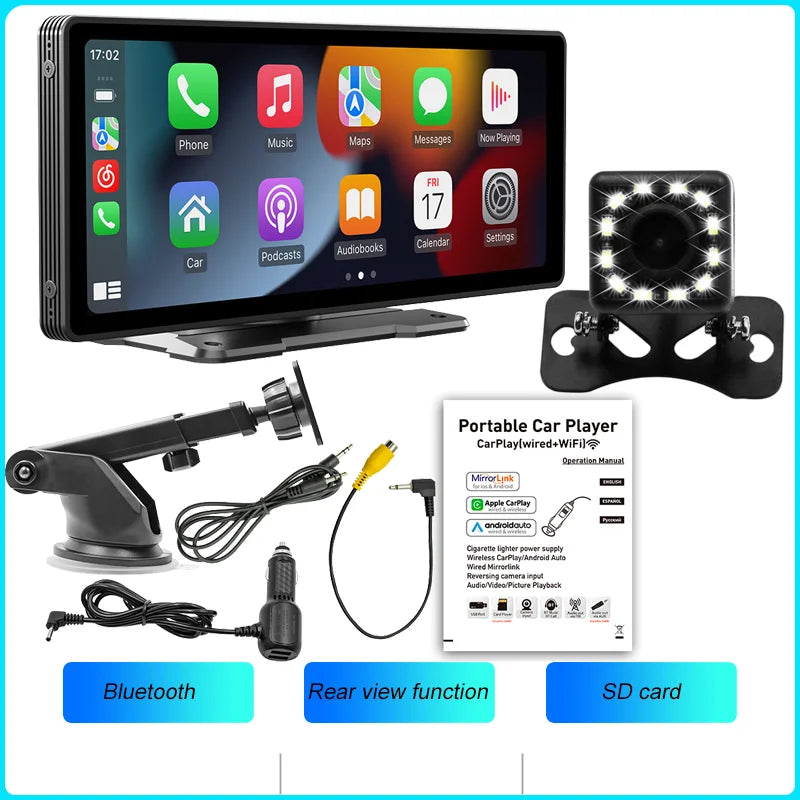

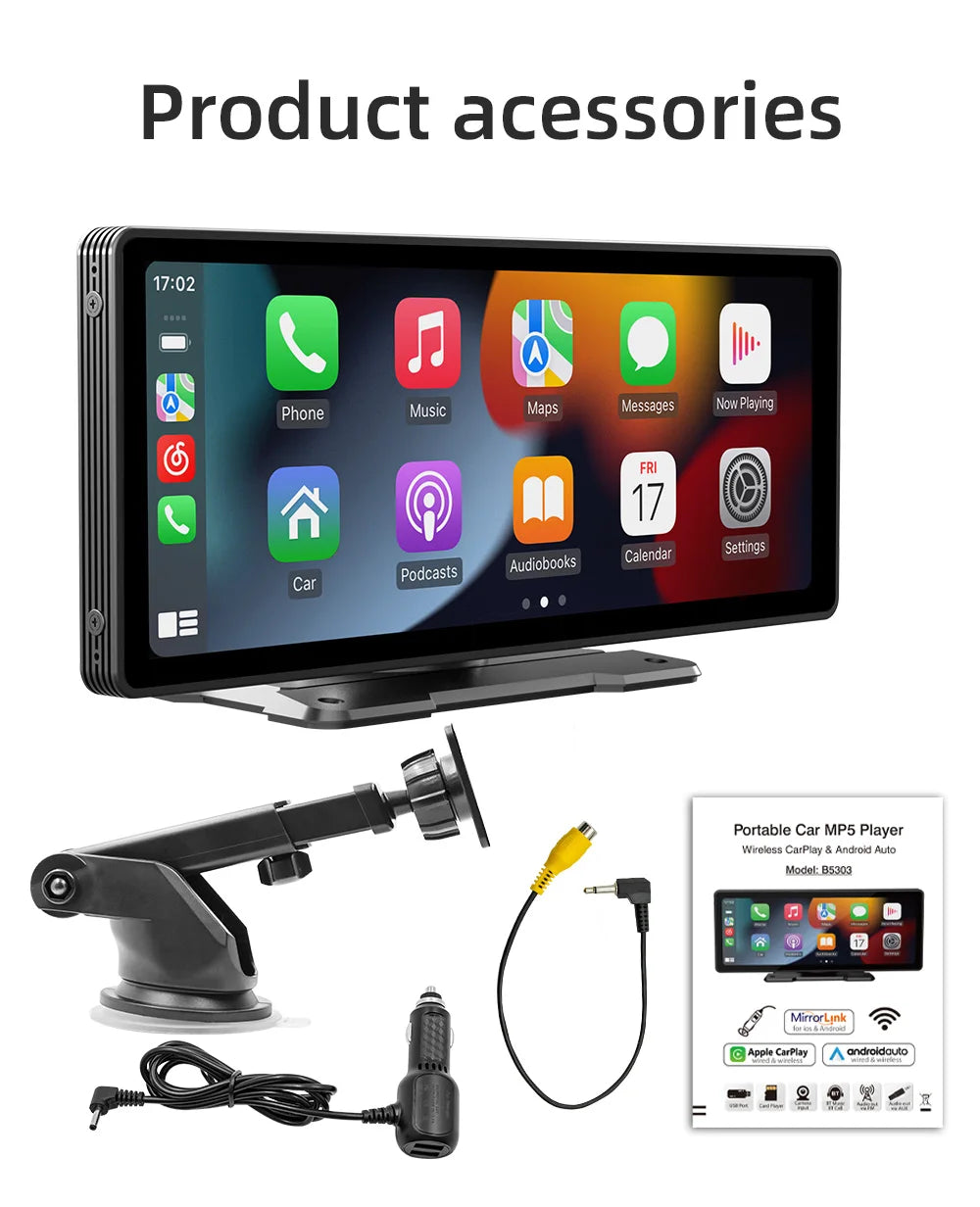

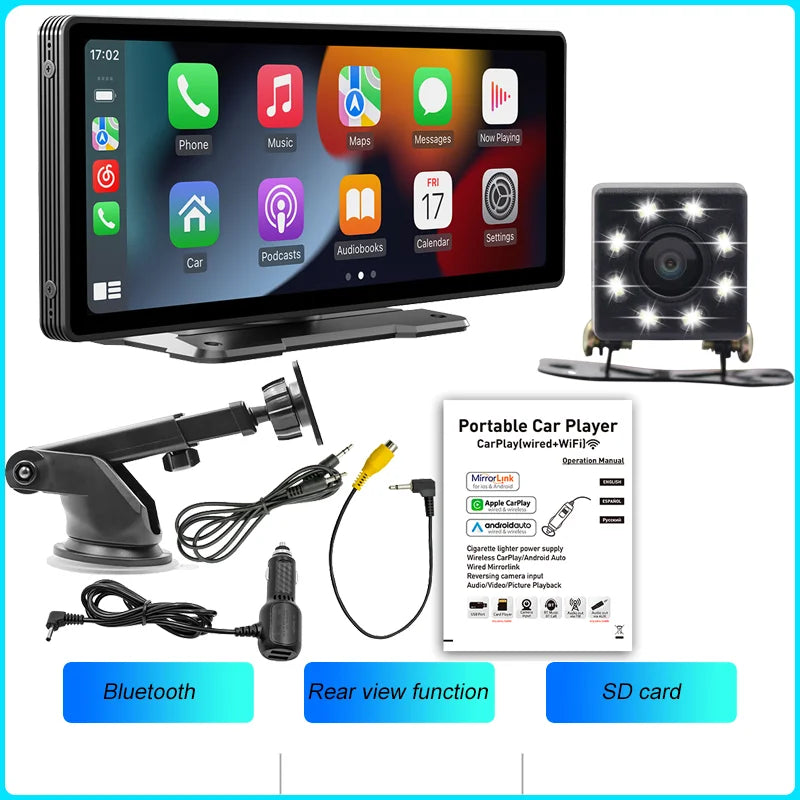

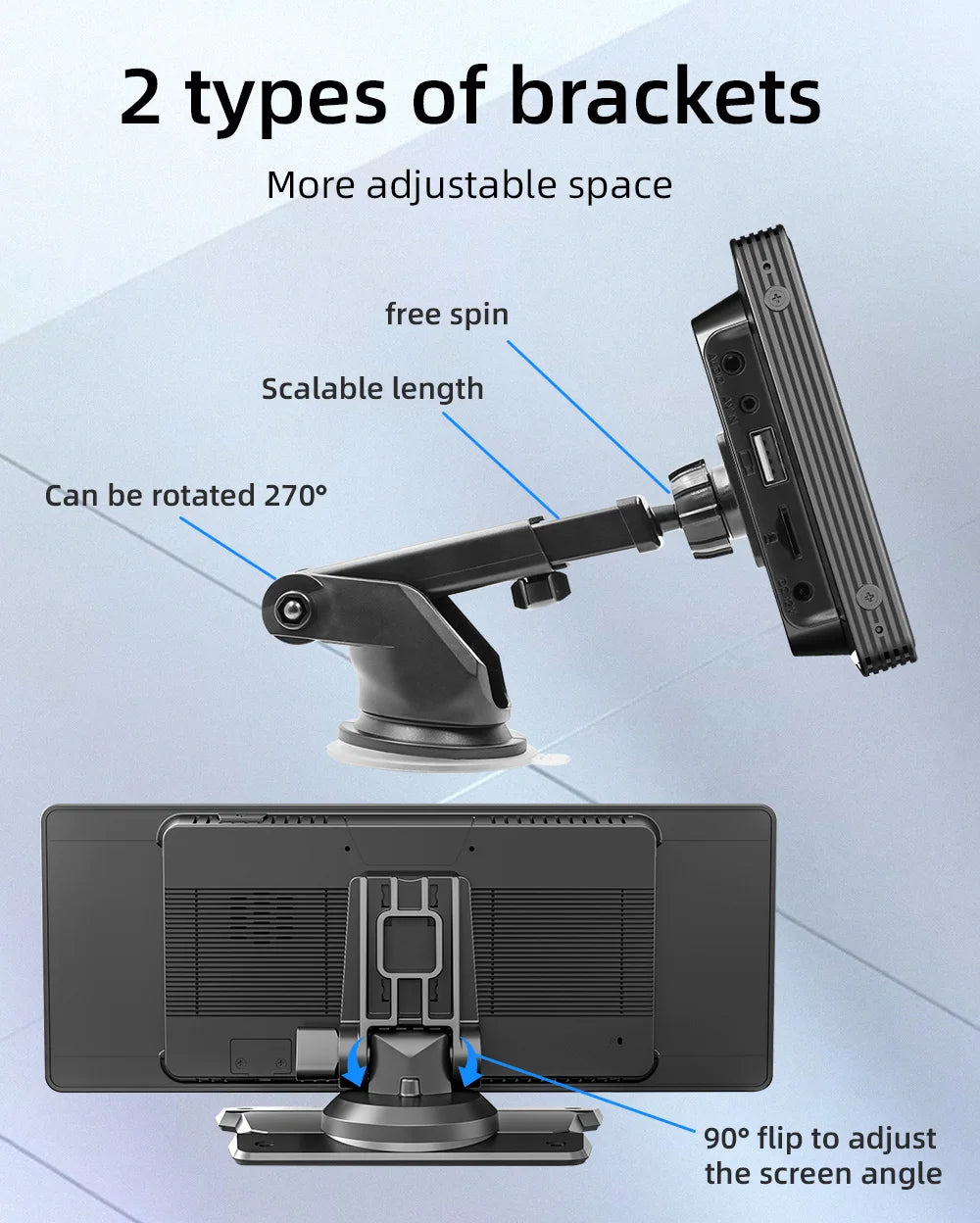

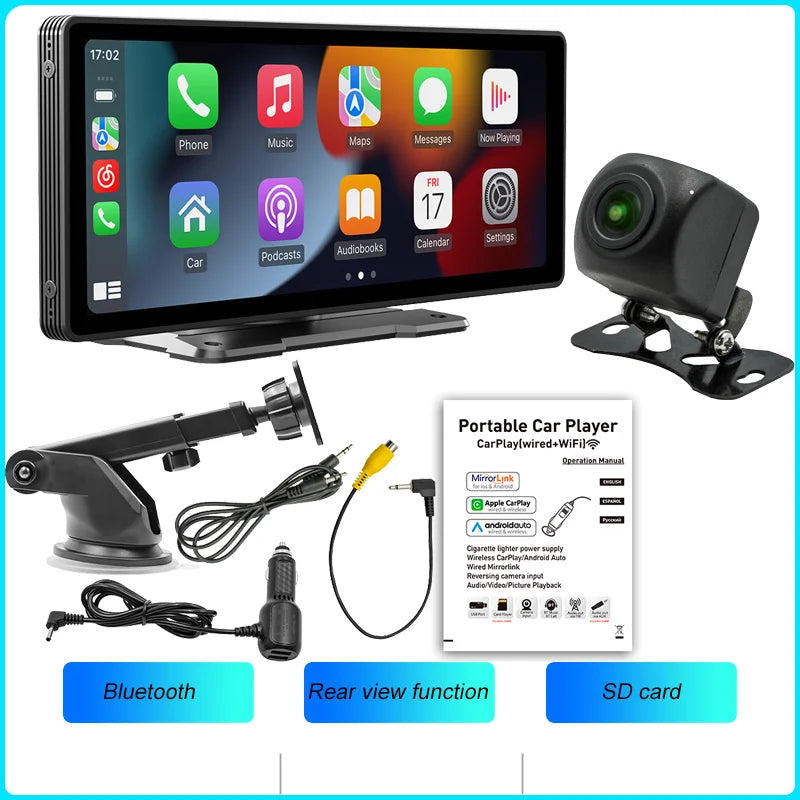

Accessories: 1. Host 2. Manual 3. Cigarette lighter power cord (with USB charging port) 4. Installation bracket x2 5. Reversing video cable (accessories, manuals, and packaging will be updated from time to time, subject to actual receipt of the goods)

Choice: yes

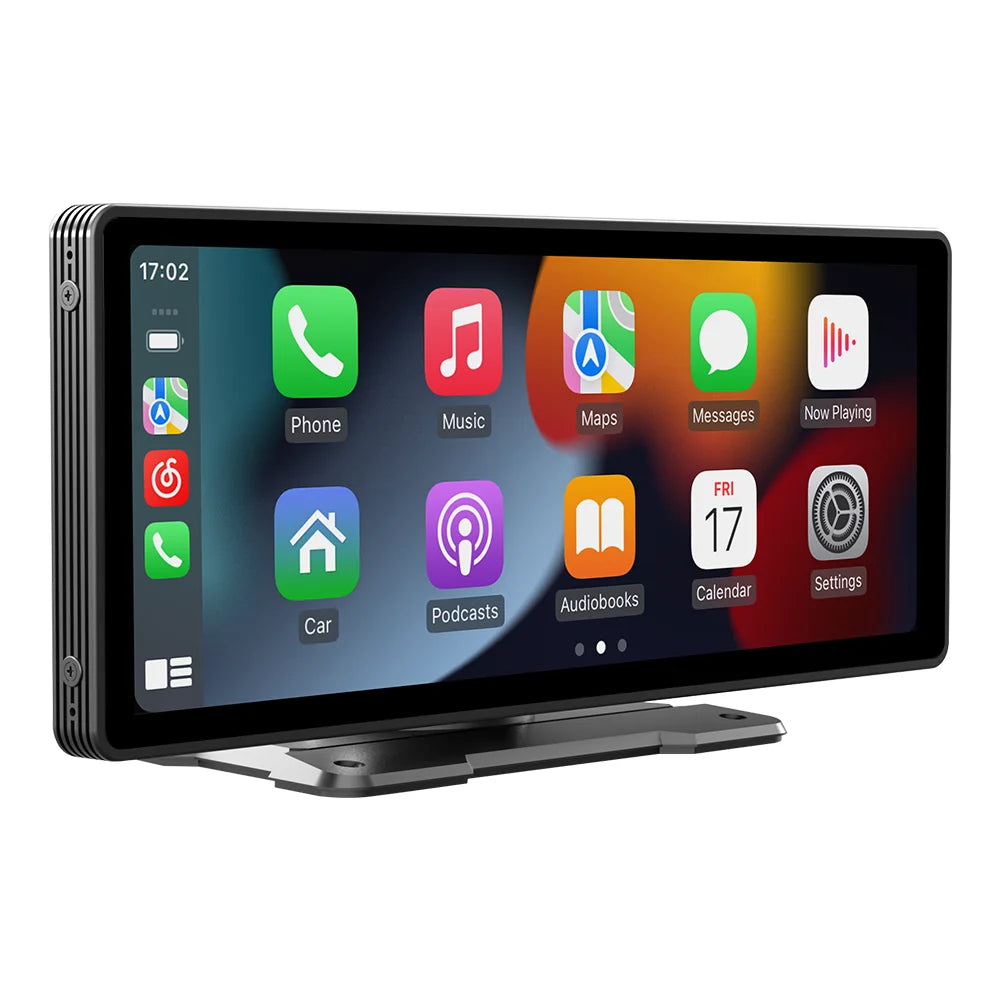

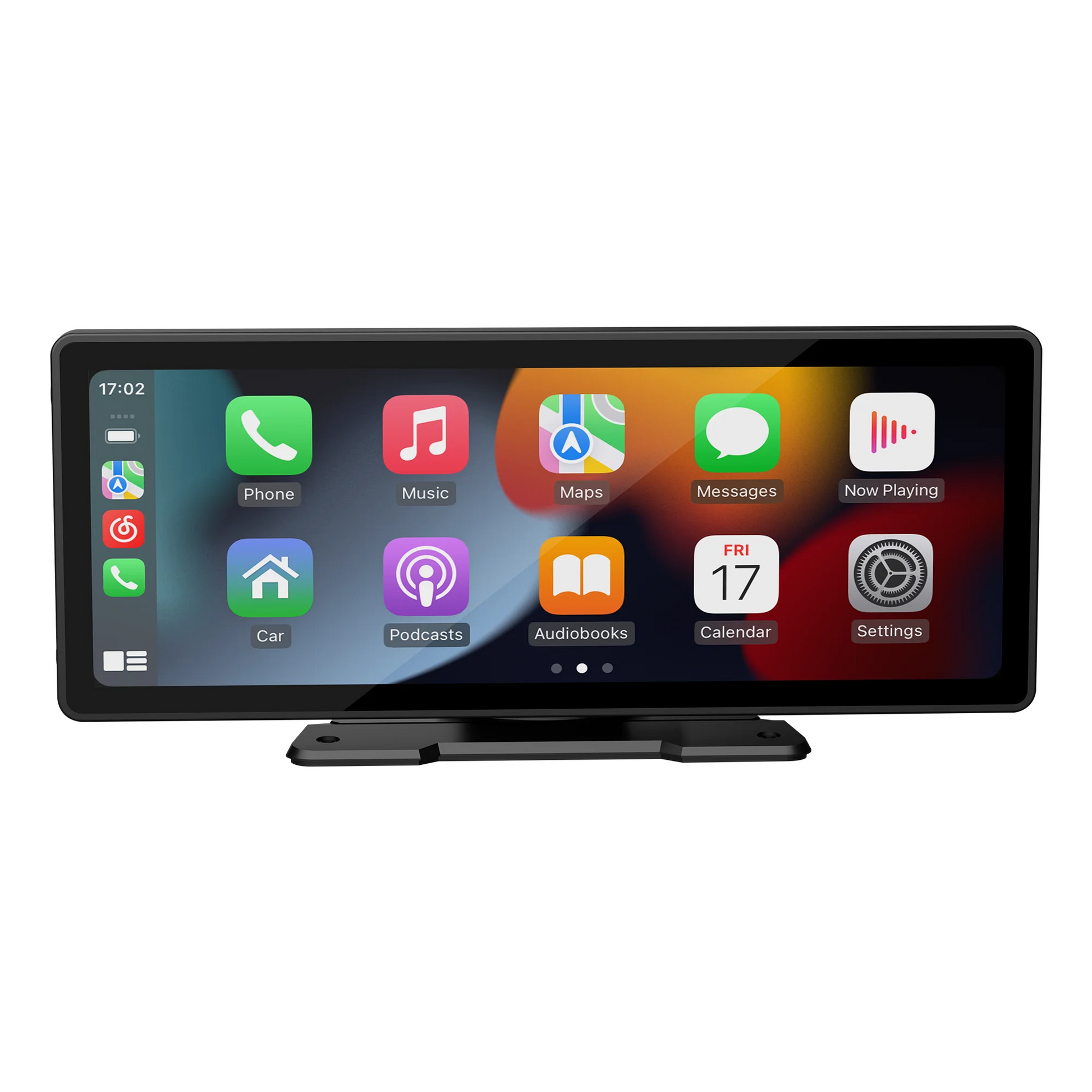

BQCC 10.26 Inch Portable Wireless Carplay Screen HD Rear Reversing Camera Car Radio DVR MP5 Multimedia Video Player Android Auto

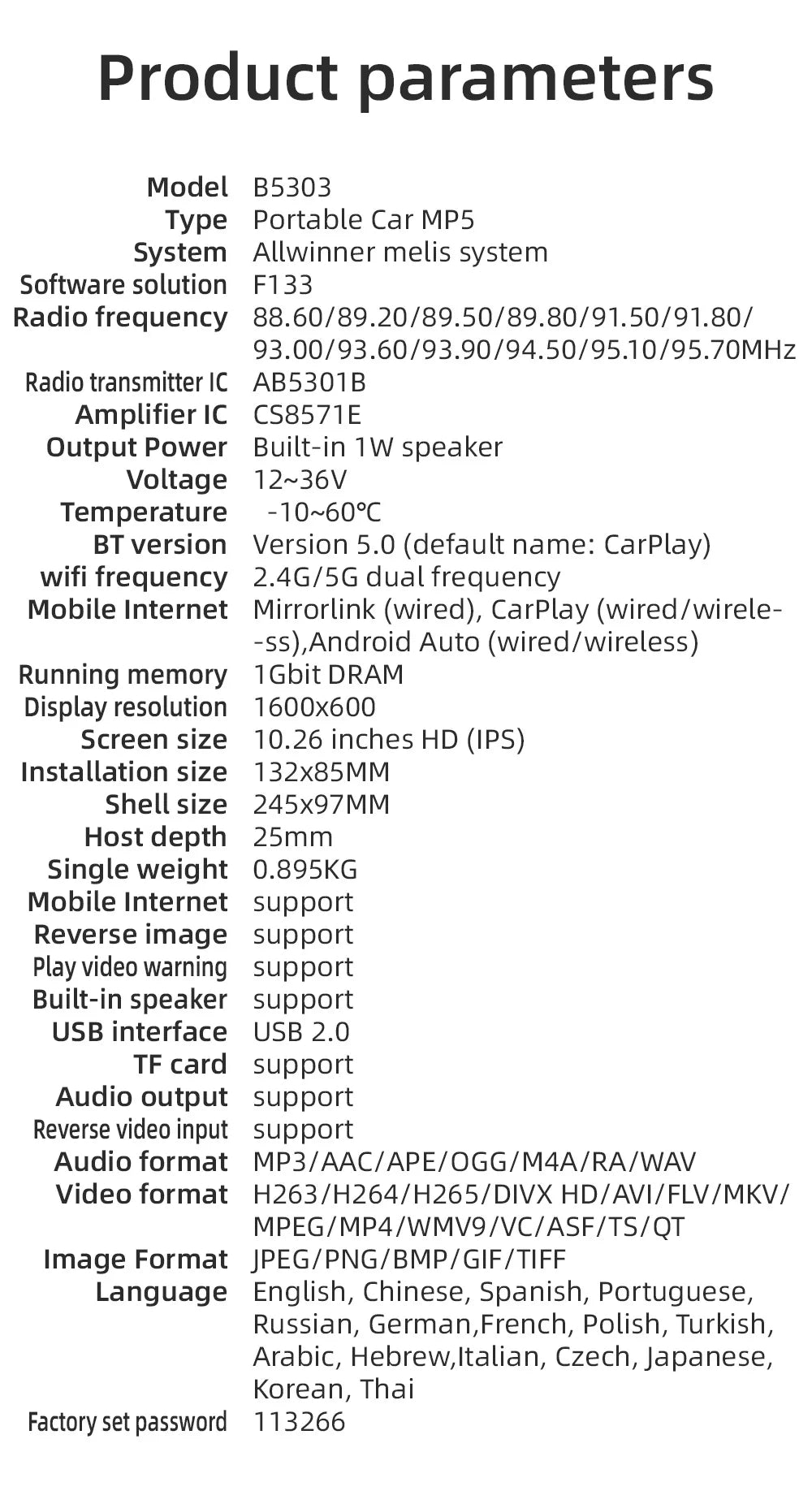

Basic parameters

Model: B5303

Type: Portable car MP5

System: Allwinner melis system

Software solution: F133

Radio transmission frequency: 88.60/89.20/89.50/89.80/91.50/91.80/93/.00/93.60/93.90/94.50/95.10/95.70MHz

Radio transmitter IC: AB5301B

Power amplifier IC CS8571E

Output power: built-in 1W speaker

Working voltage: 12~30V

Working temperature: -10~60℃

Bluetooth version: version 5.0 (default name: CarPlay)

WiFi frequency: 2.4G/5G dual-band (automatically switches according to the frequency band of the hotspot connected to the mobile phone, used when connecting Android AUTO and Apple CARPLAY)

Performance parameters

CPU: F133

Running memory: 1Gbit DRAM

Display resolution: 1600x600

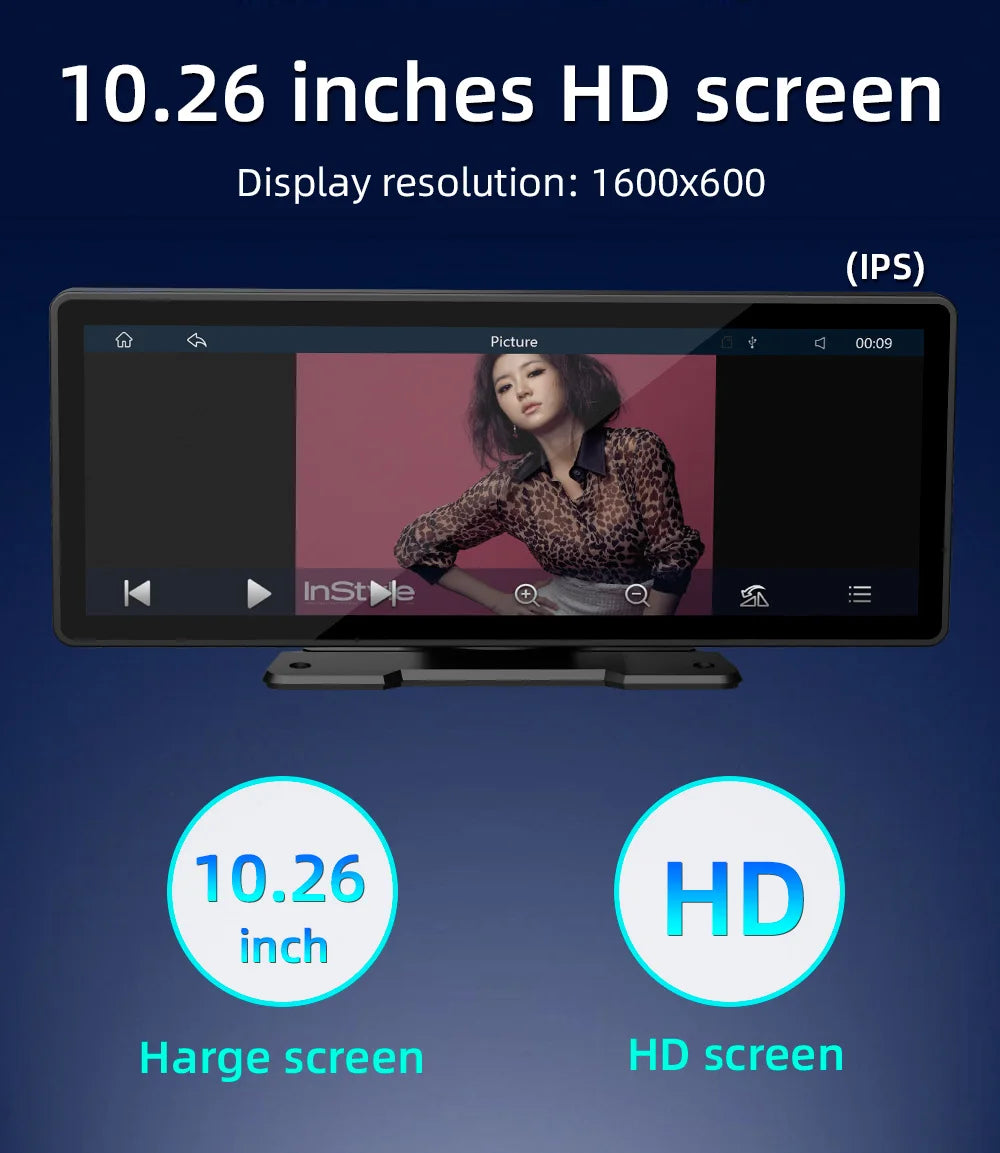

Screen size: 10.26 inches HD (IPS)

Size parameters

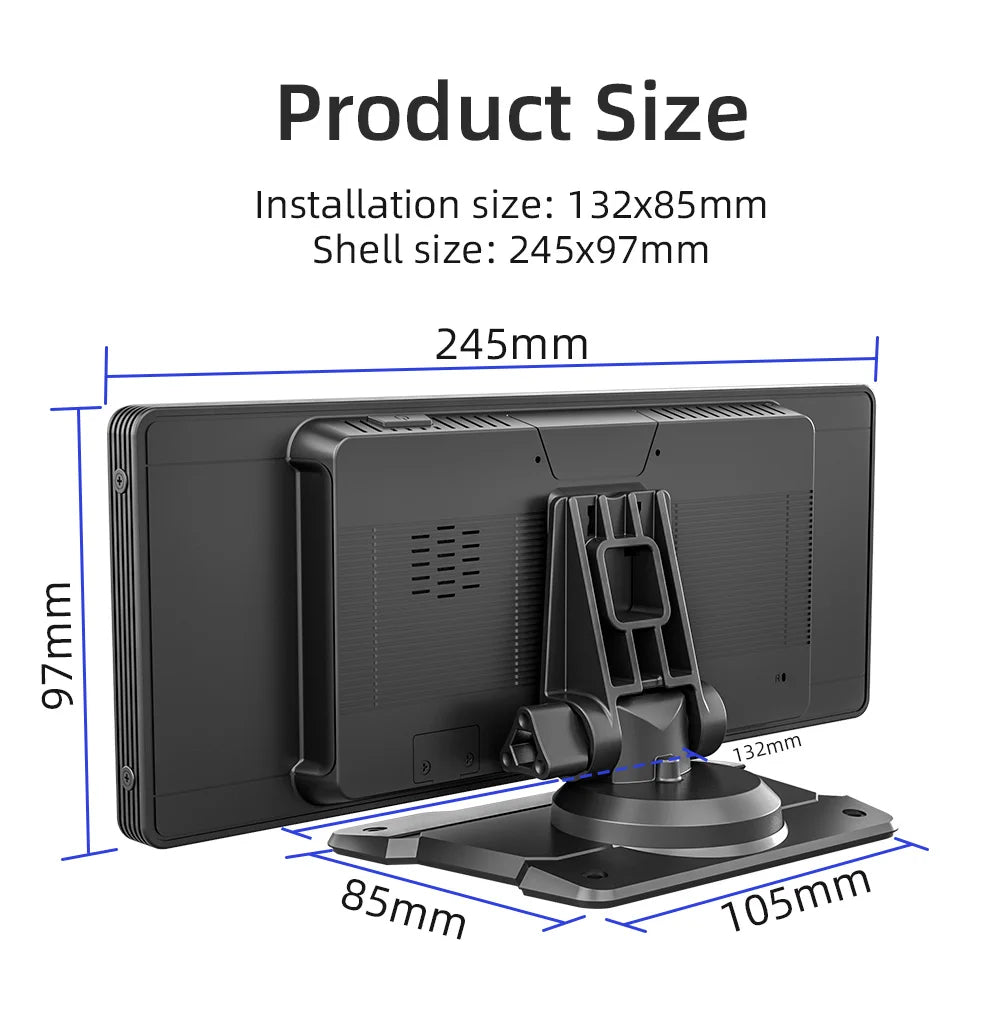

Installation size: 132x85MM

Case size: 245x97MM

Host depth: 25MM

Color box size: 275x127x97mm (gift box)

Whole box size: 560x315x270mm

Number of units per box: 12 units

Weight parameter

Single unit weight: 0.98KG

Net weight of the whole box: 11.76KG

Gross weight of the whole box: 12.70KG

Function parameter

Mobile Internet: Support

Reversing image: Support

Play video warning: Support

Driving recorder: supported (recorder optional)

Built-in speaker: support

USB interface: USB 2.0

TF card: supported

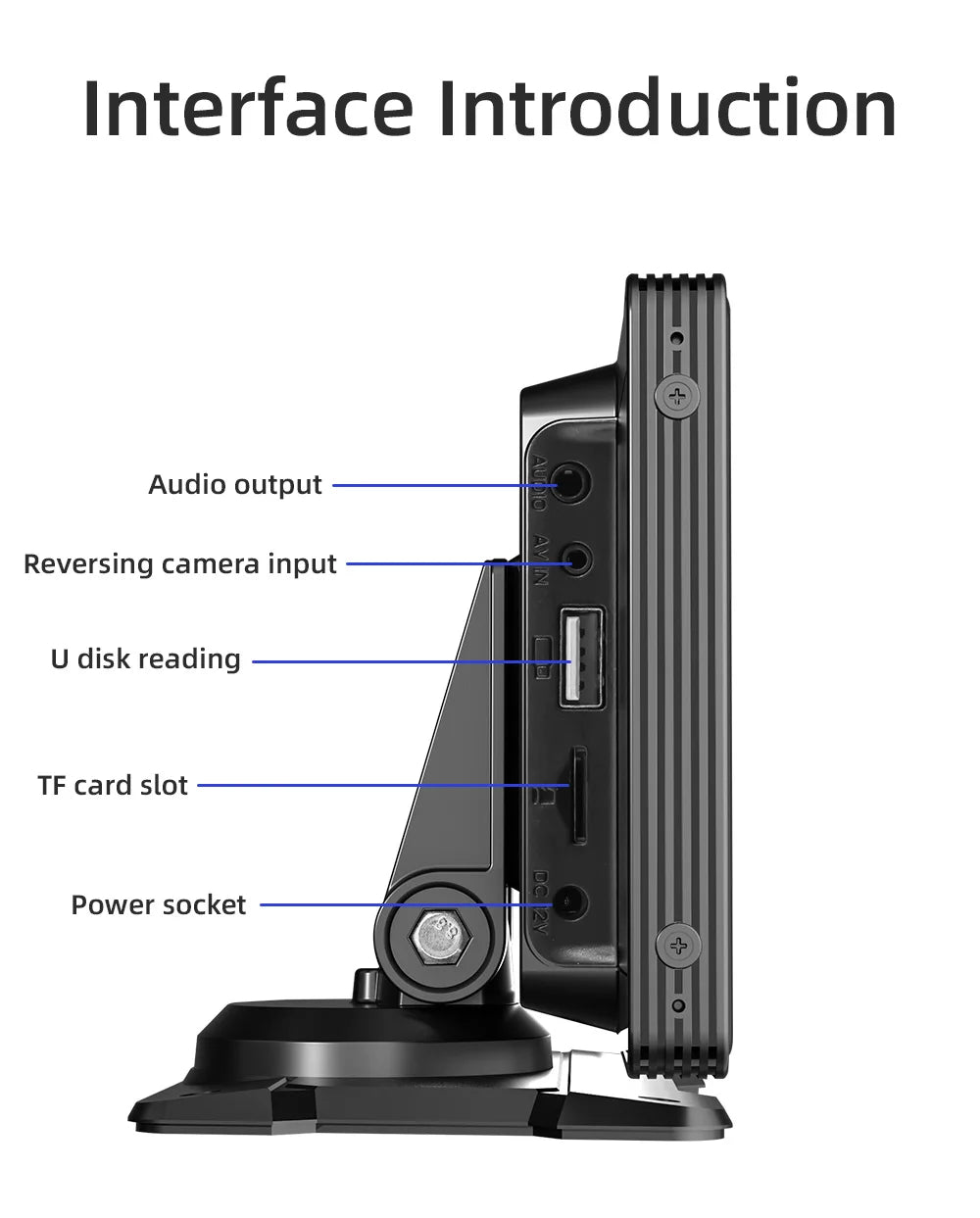

AUX port parameters

Audio output: support

Reversing video input: support

Format parameters

Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV

Video format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT

Image format: JPEG/PNG/BMP/GIF/TIFF

Language parameters:

English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean, Thai

Other parameters

Factory setting password: 113266

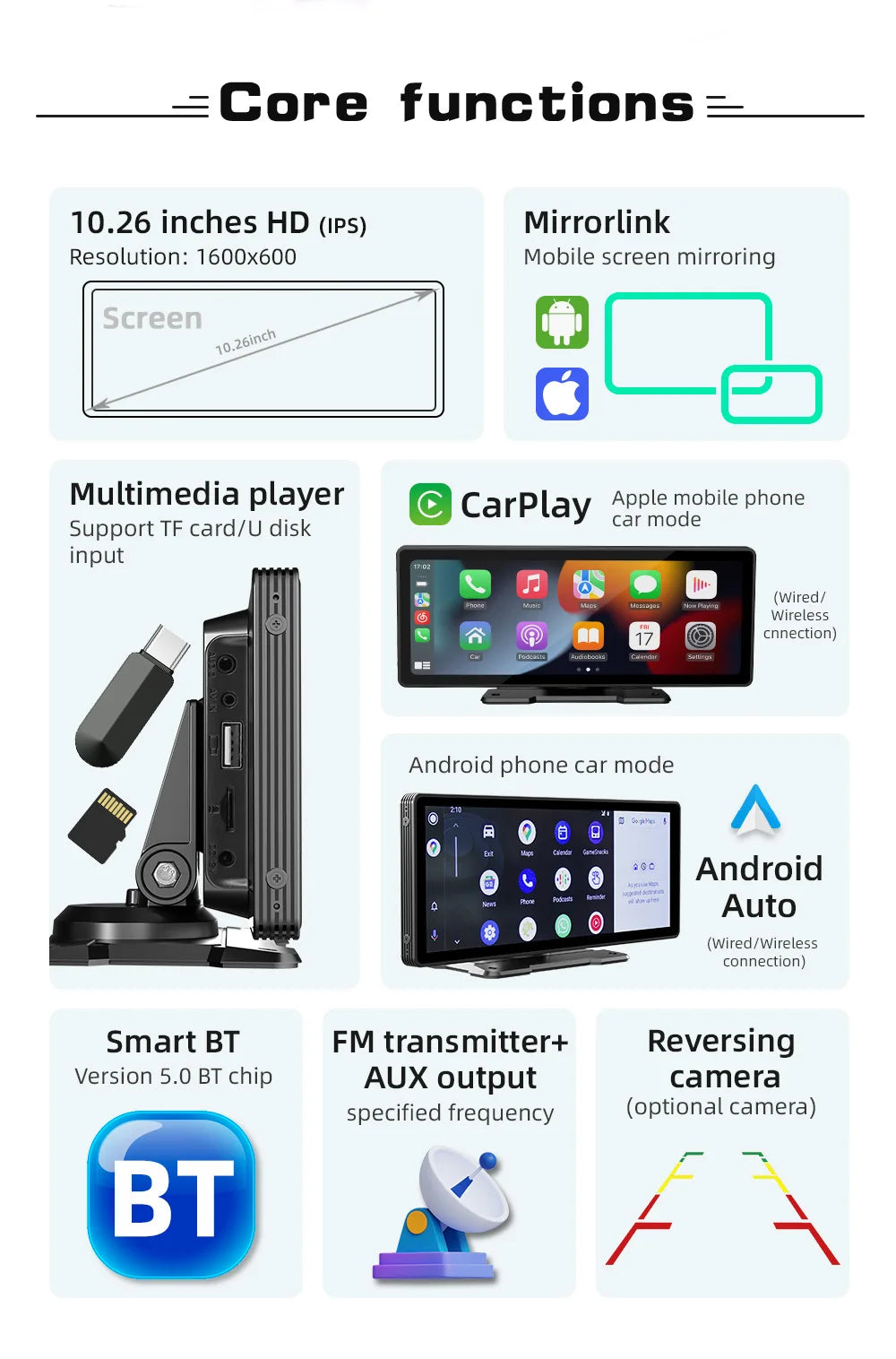

Basic skills

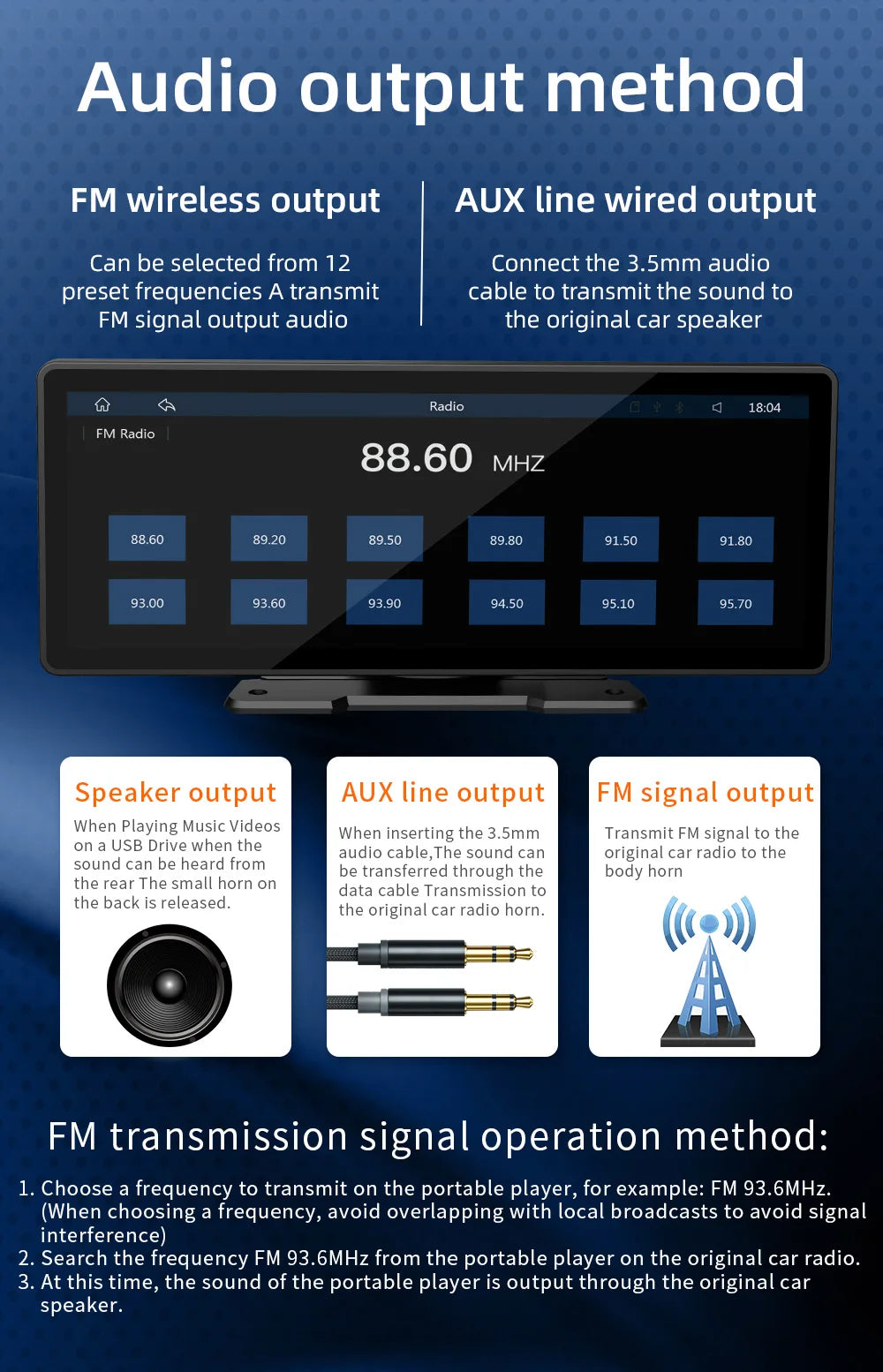

1.Radio frequency transmitting function

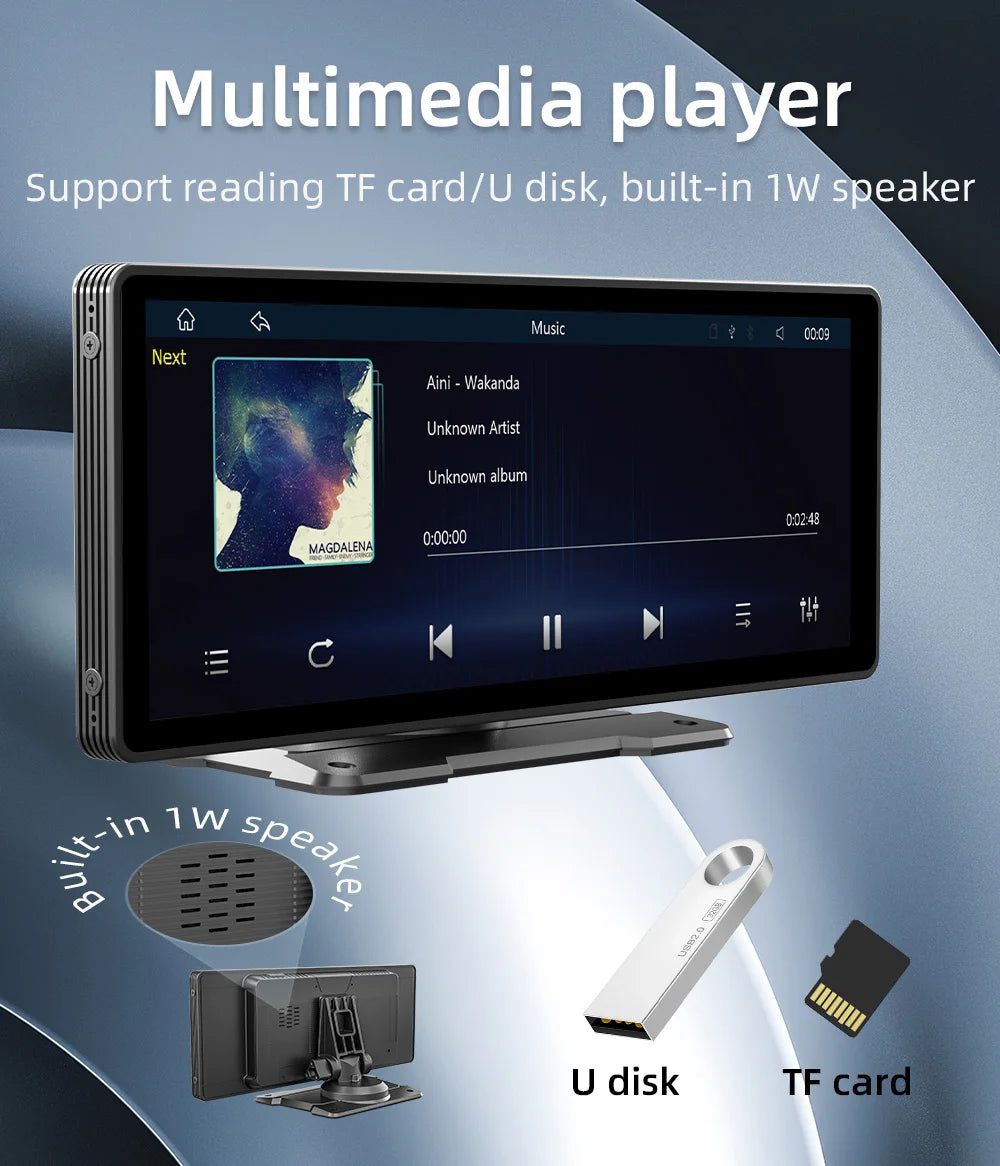

2.SD card USB flash drive (audio/video/pictures)

3.Bluetooth function

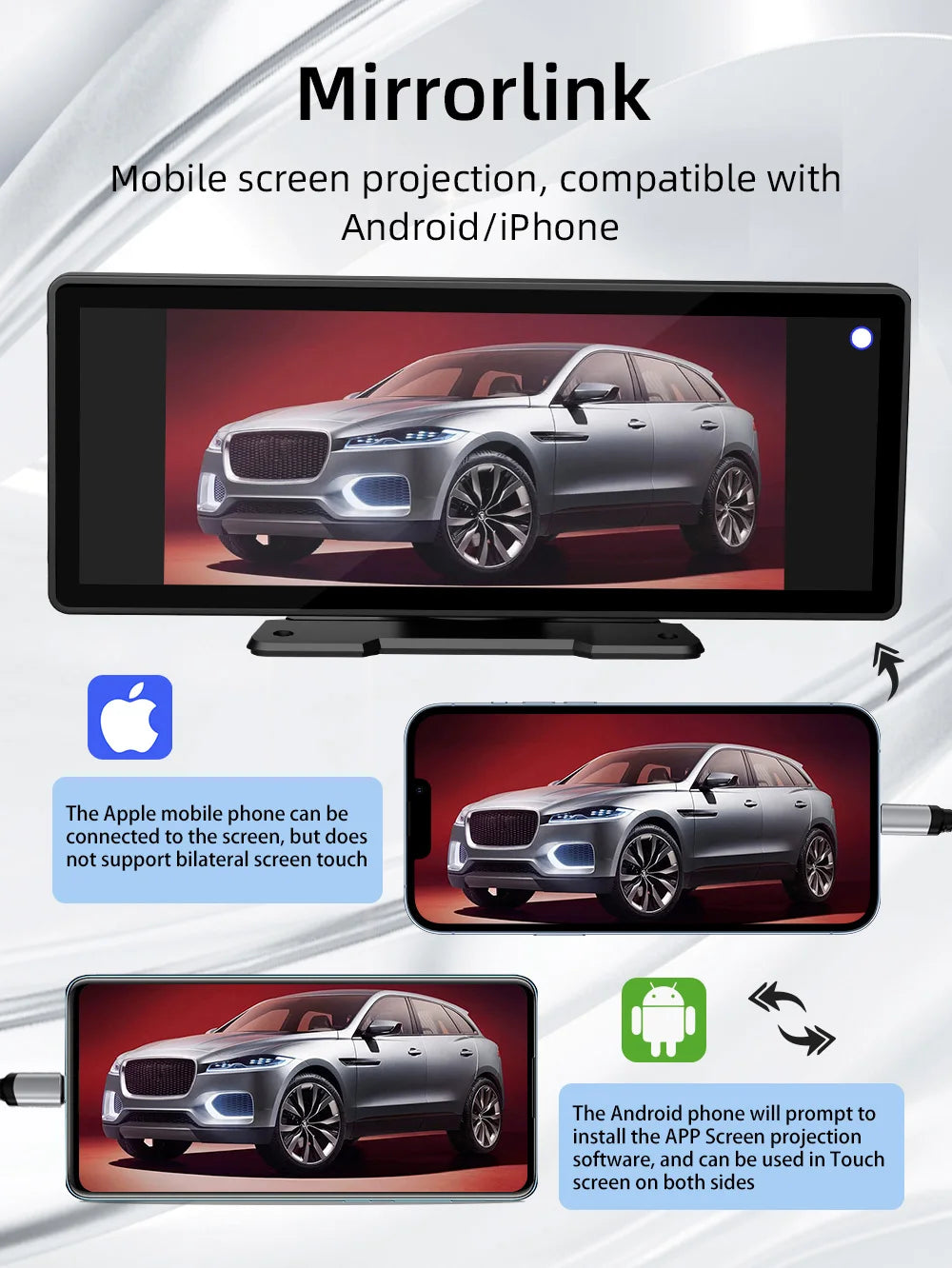

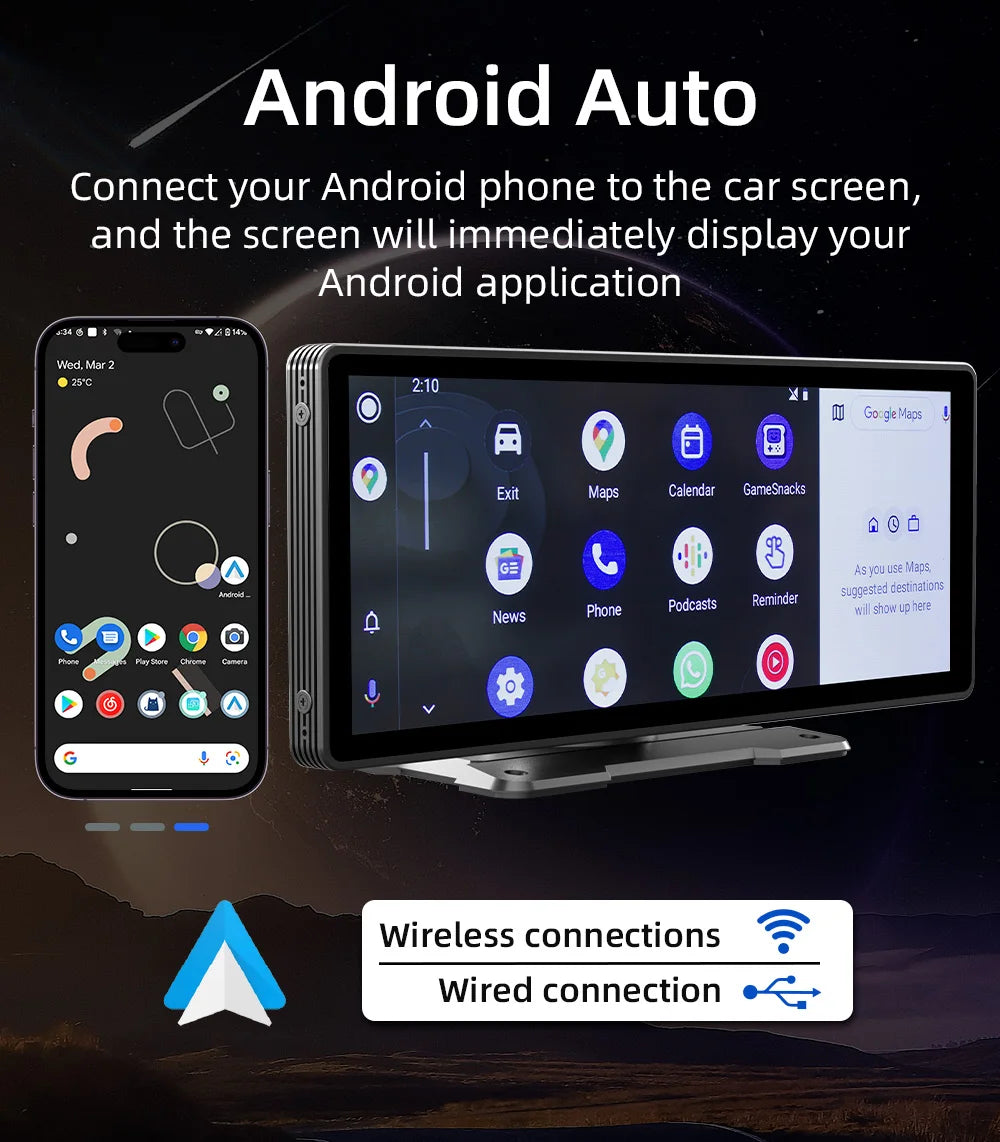

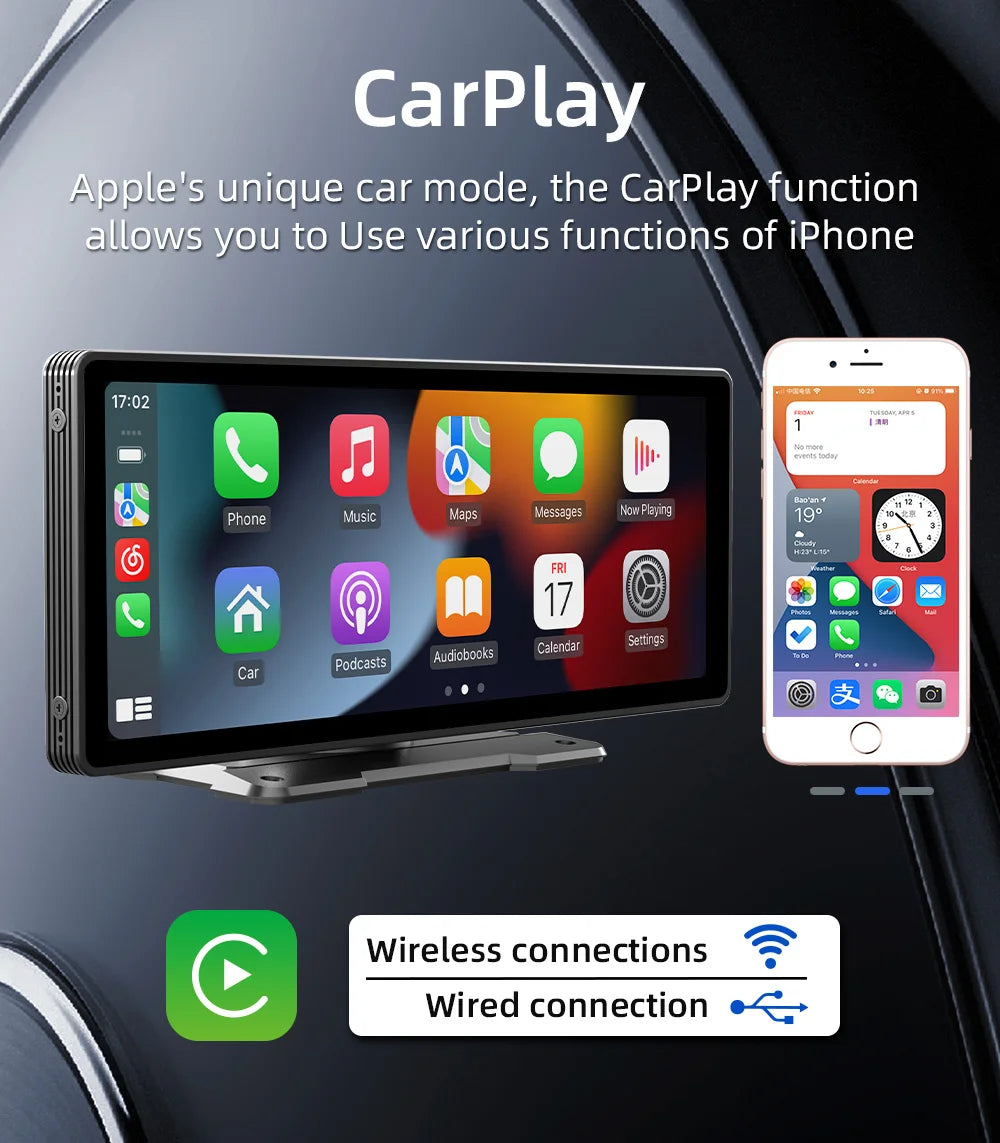

4. Wired mobile phone screen projection, wired and wireless Android AUTO/Apple CarPlay

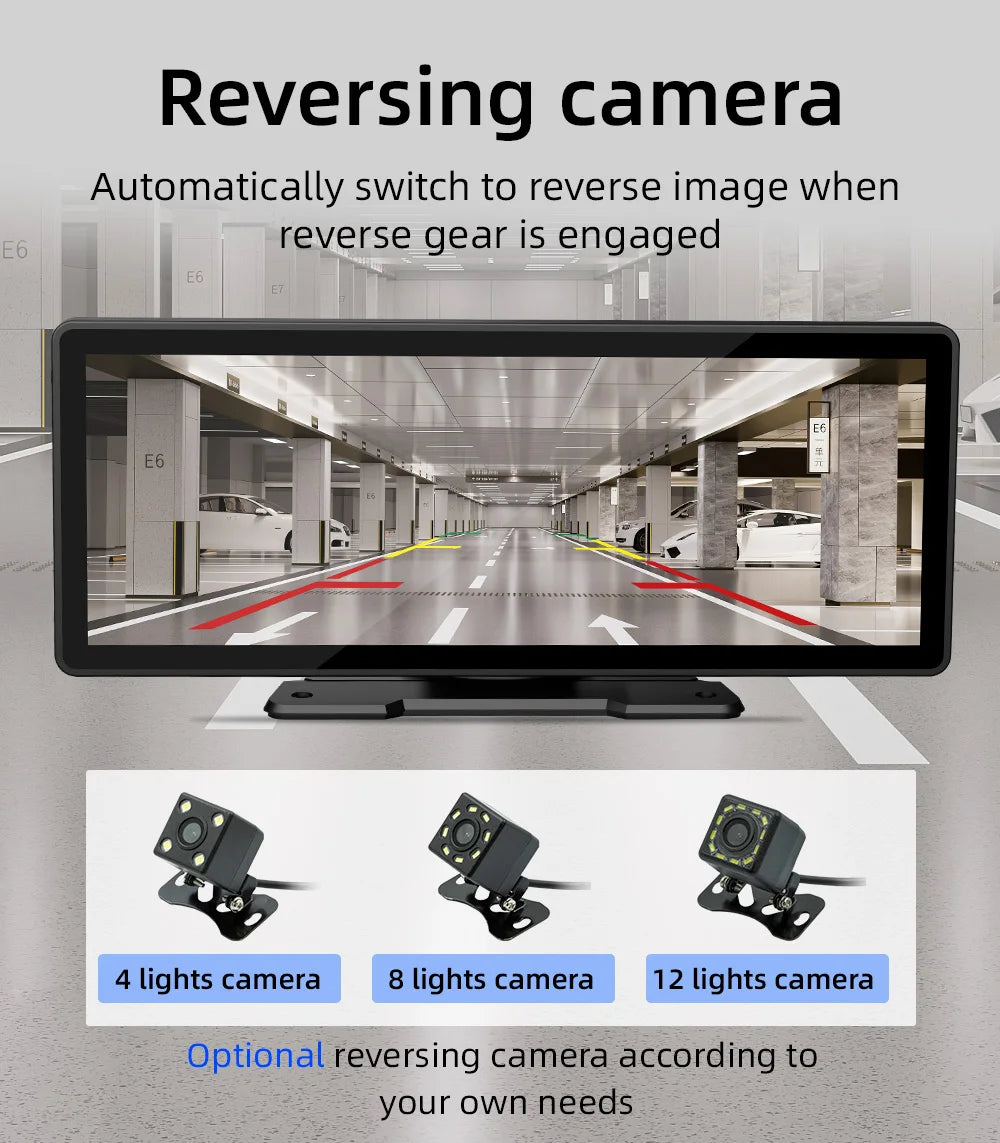

5. Rear view function (camera optional)

6.Audio output function

7. Driving recorder (recorder optional)Warranty
