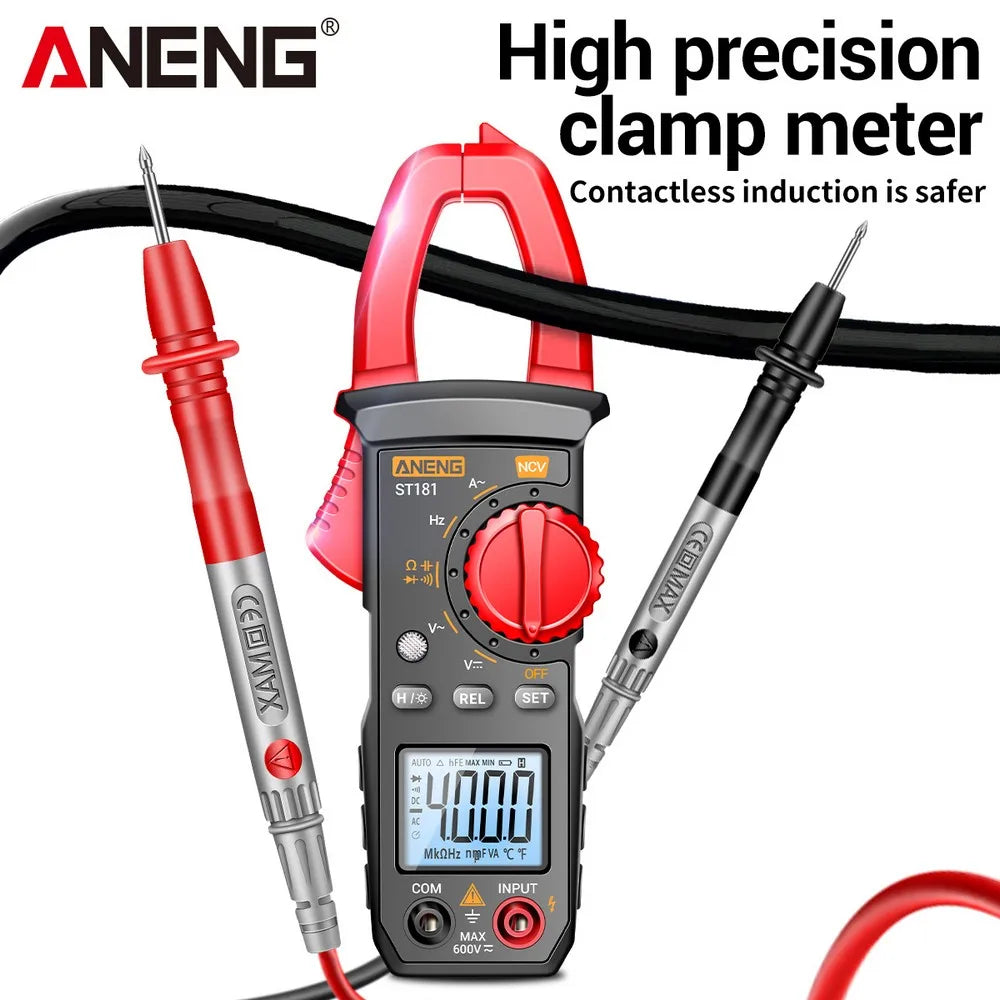

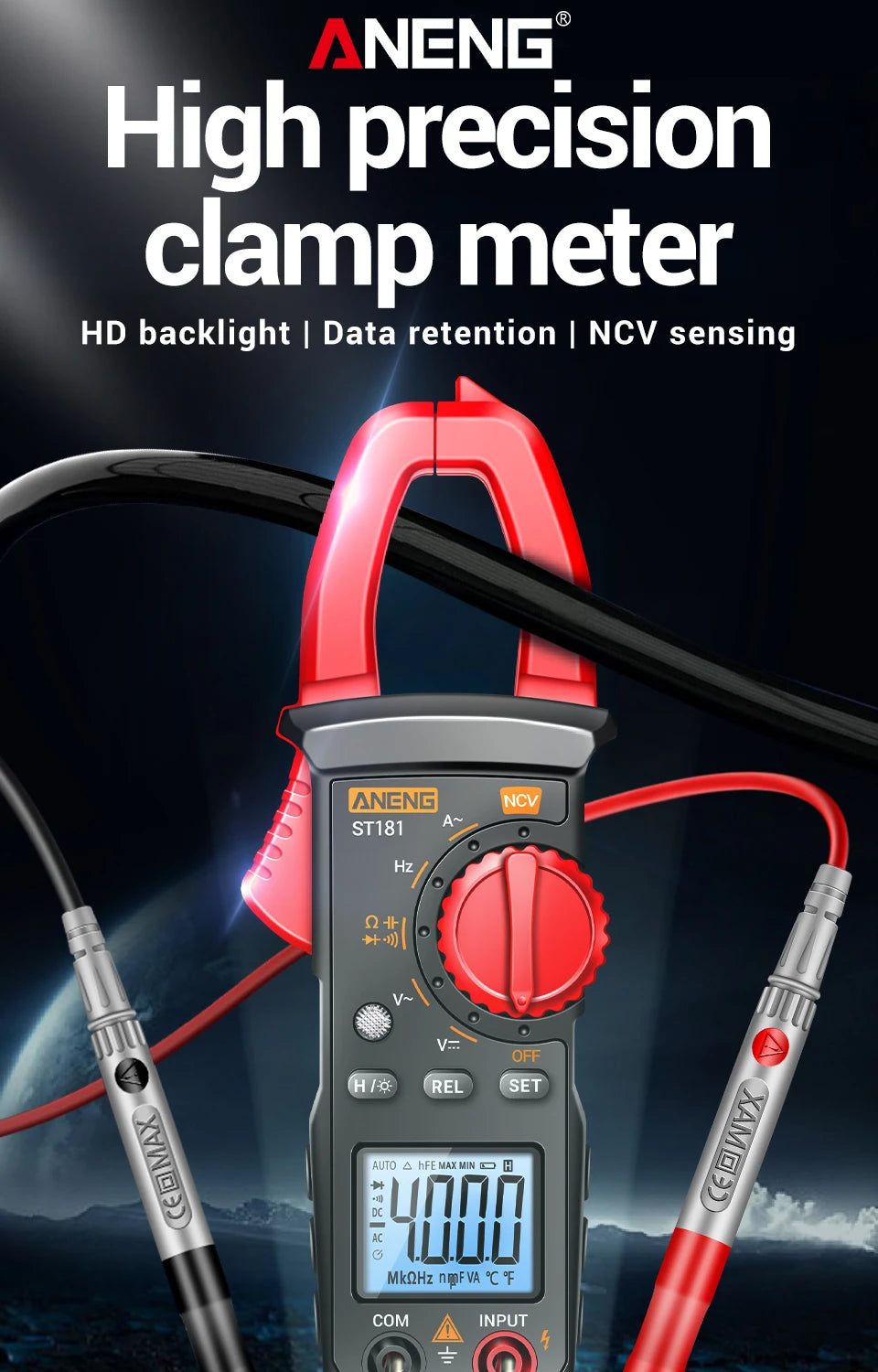

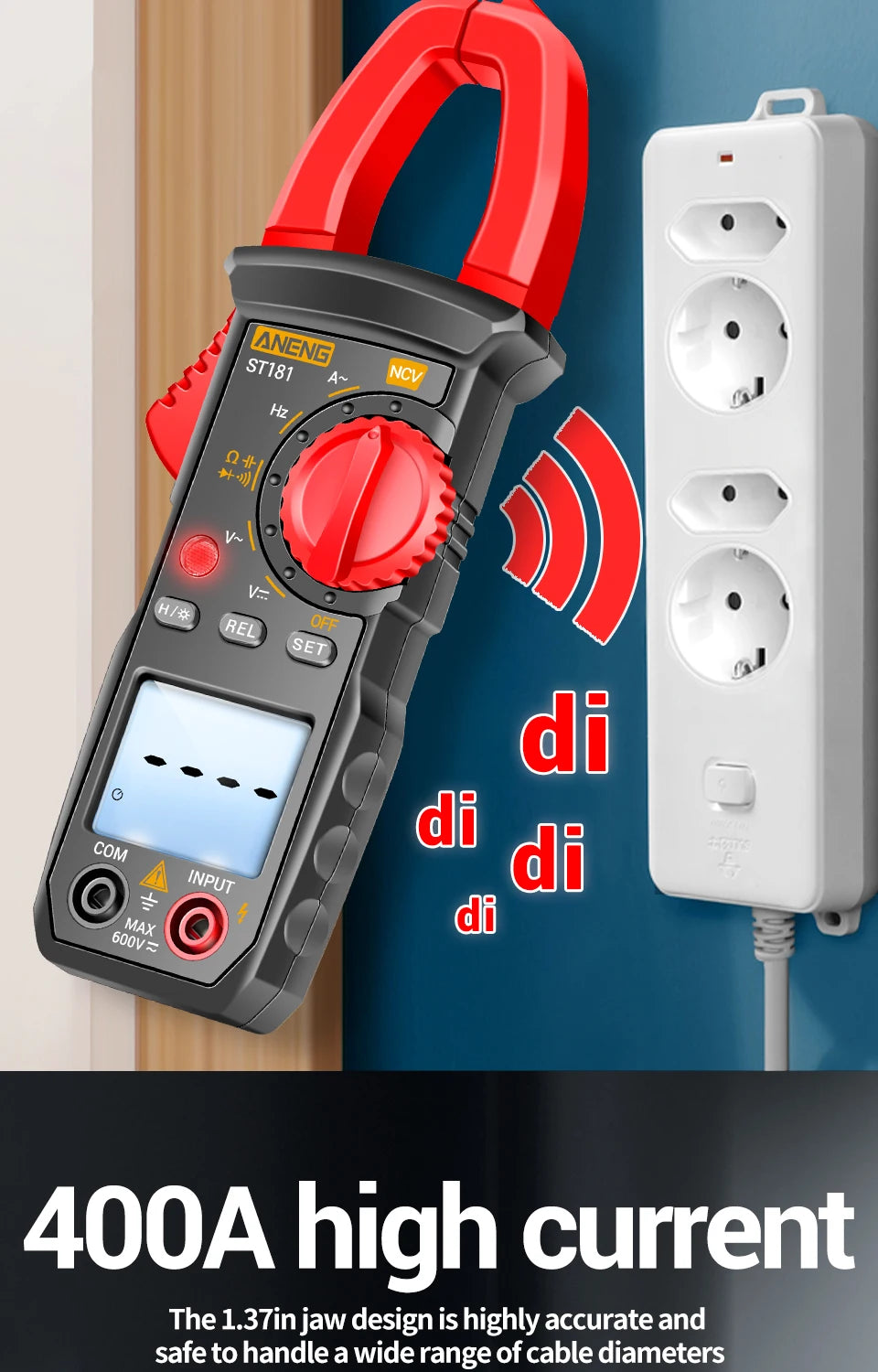

ANENG ST181 Clamp Meter 4000 Counts Current Ammeter Tester Digital Multimeter DC/AC Voltage Car Amp Hz Capacitance NCV Ohm Test
ANENG ST181 Clamp Meter 4000 Counts Current Ammeter Tester Digital Multimeter DC/AC Voltage Car Amp Hz Capacitance NCV Ohm Test
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANENG
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Origin: Mainland China
Weight: 260g
Operating Temperature: 0-40 temperature

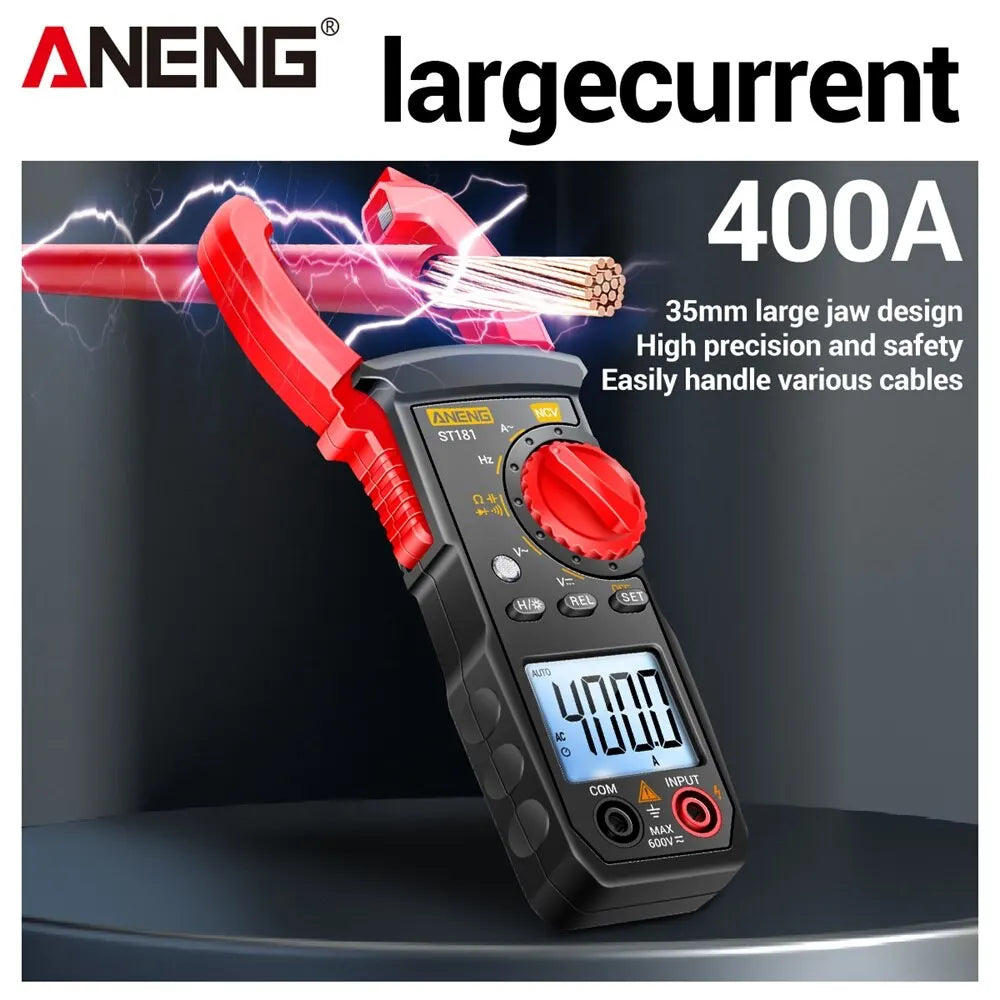

Measuring Current Range: 40A/400A
Display Type: Digital Only
Measuring Voltage Range: 400mV/4V/40V/400V/600V
Measuring Resistance Range: 400/4k/40k/400k/4M/40M ohm
Certification: CE
Measuring Capacitance Range: 4nF/40nF/400nF/4UF/400UF/4mF

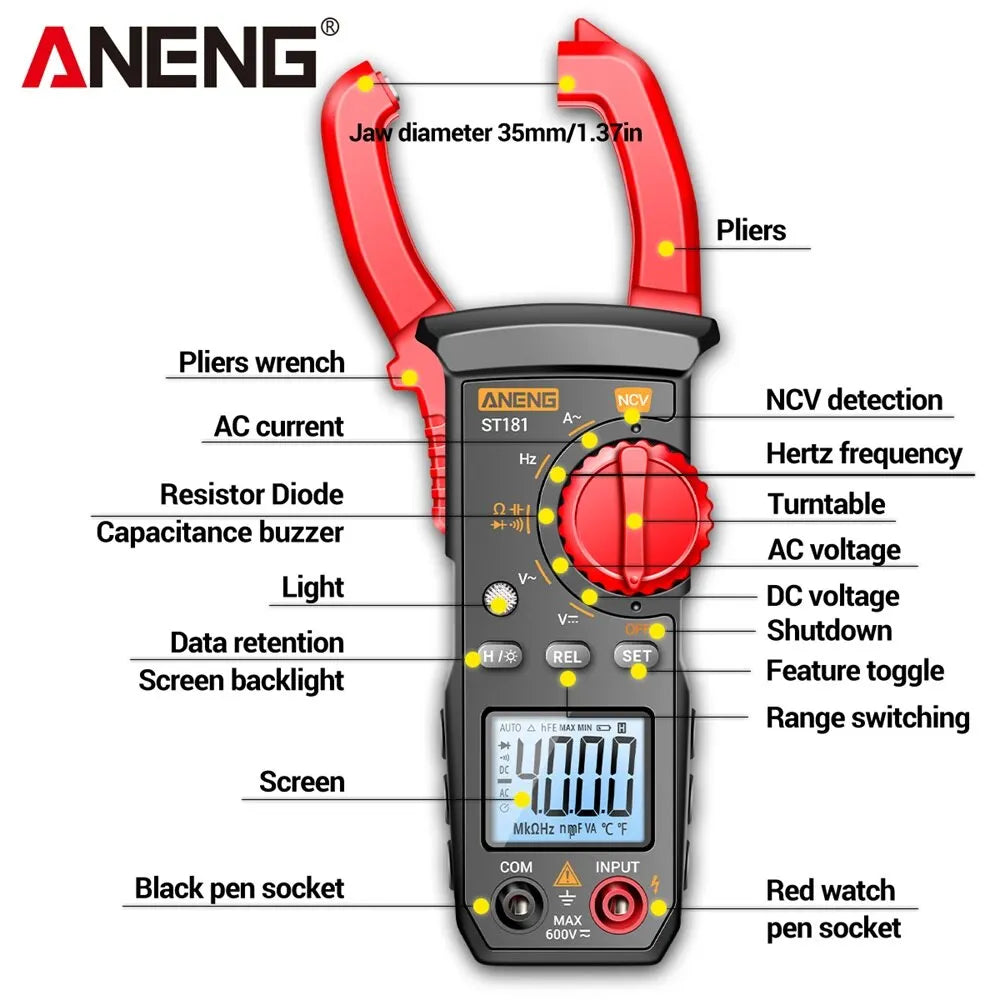

Model Number: ANENG ST181
Choice: yes
• High Precision Measurement :The ANENG ST181 Clamp Meter provides accurate voltage and current measurements, making it perfect for electrical work.

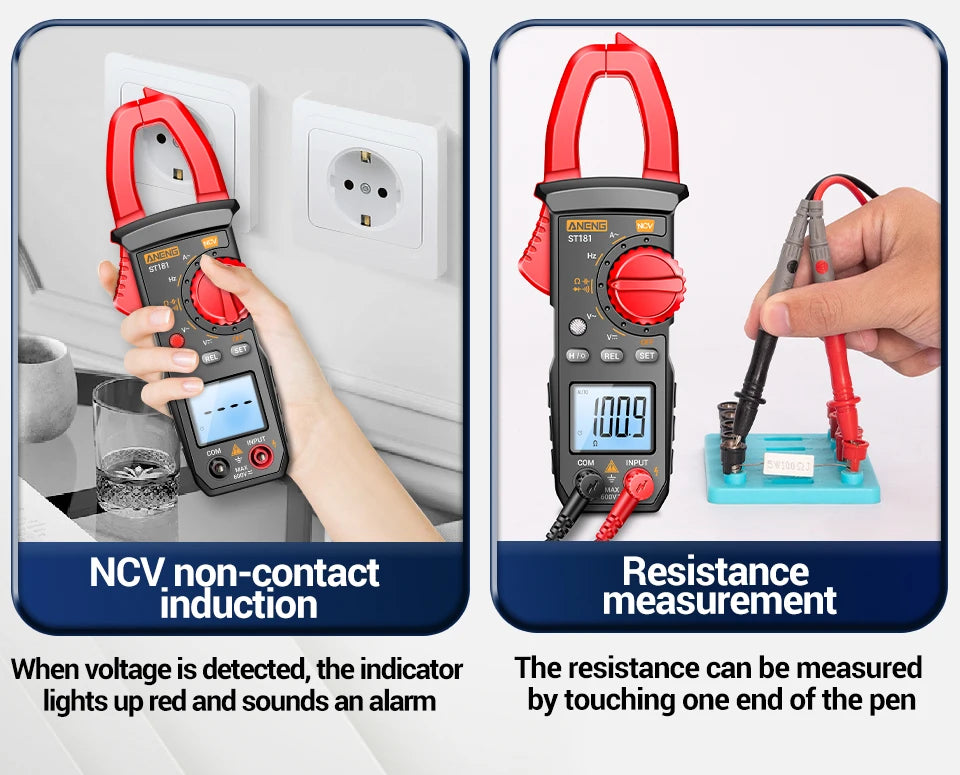

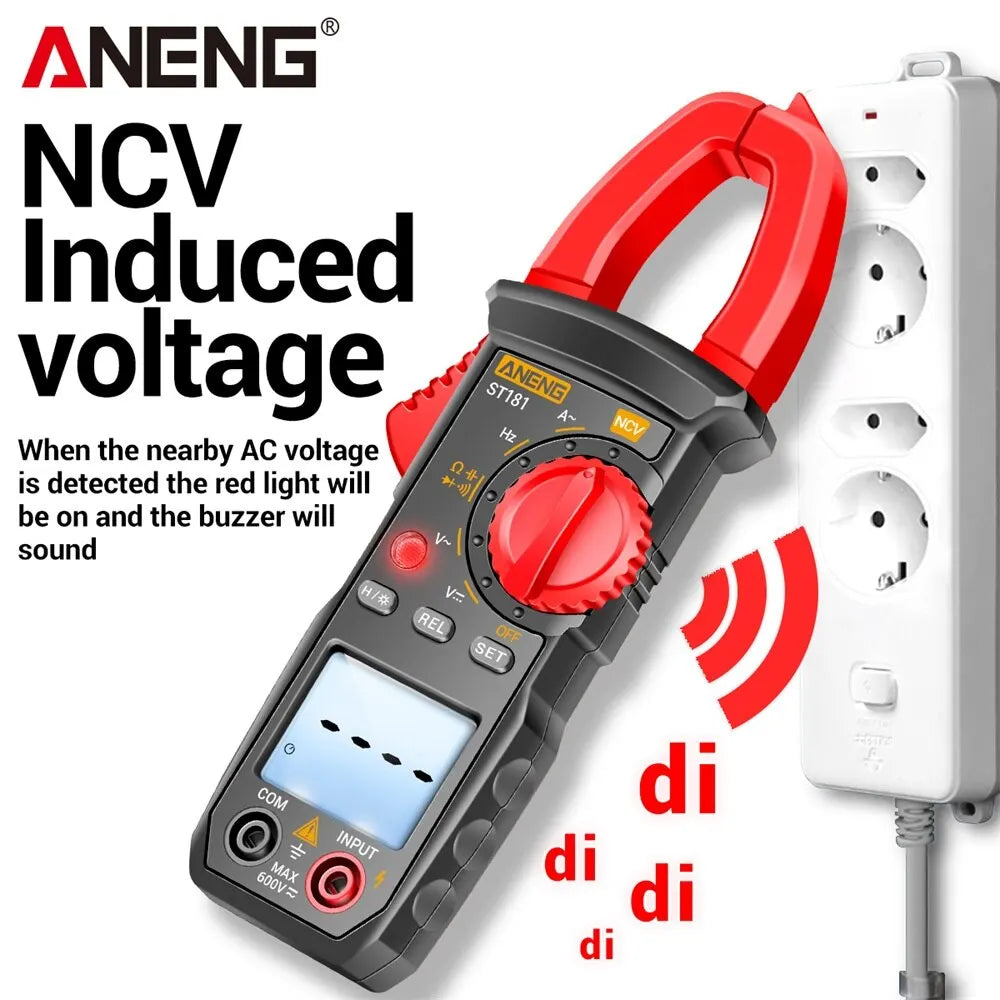

• Wide Range of Testing Capabilities :With the ability to test for DC/AC voltage, current, capacitance, NCV, and Ohm resistance, this multimeter is a versatile tool for any electrician.
• Digital Display :The digital display on the ANENG ST181 Clamp Meter makes it easy to read and interpret results, ensuring accurate measurements every time.
• CE Certified :This clamp meter is CE certified, ensuring that it meets the highest safety and quality standards.
Features:

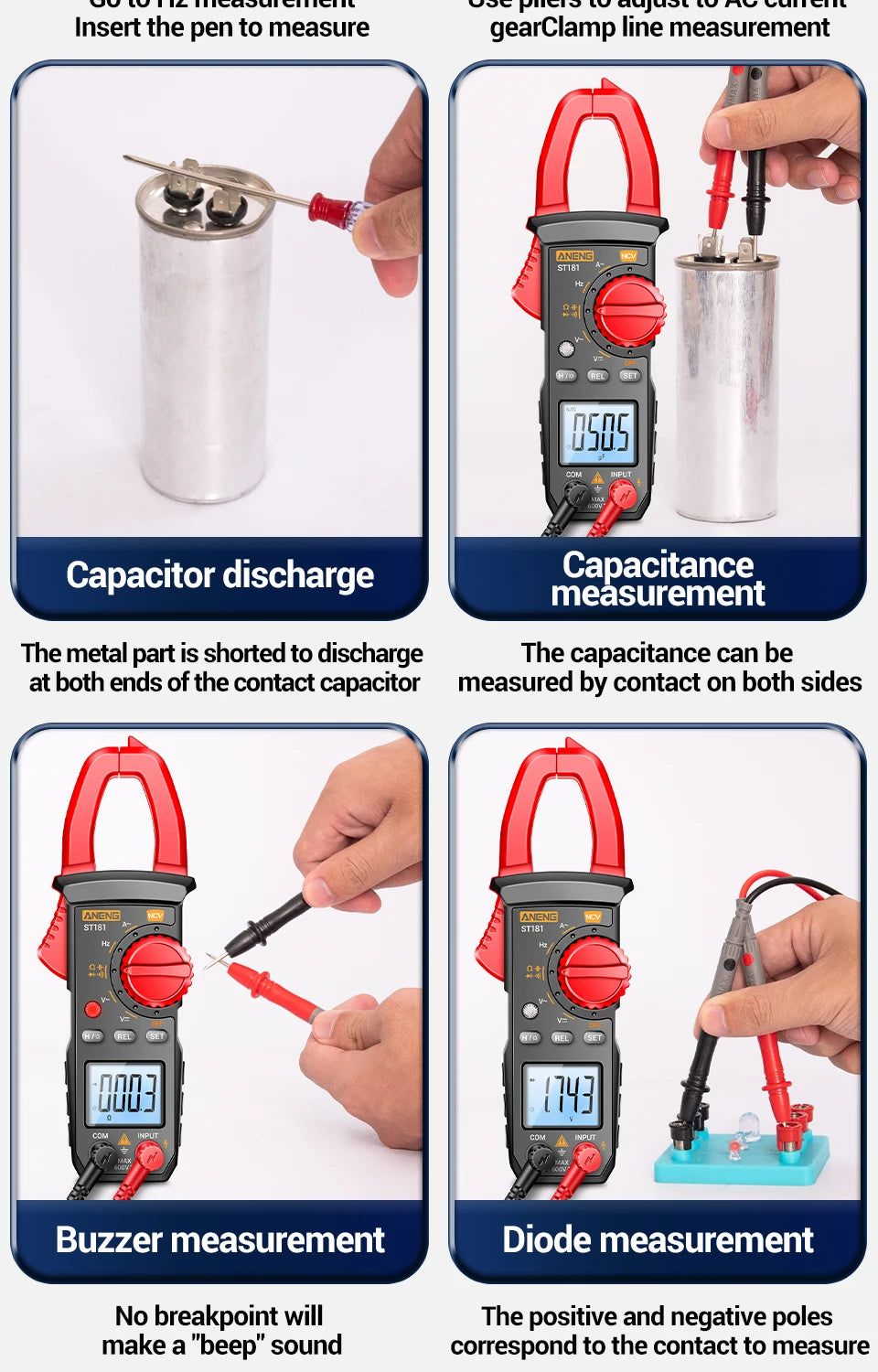

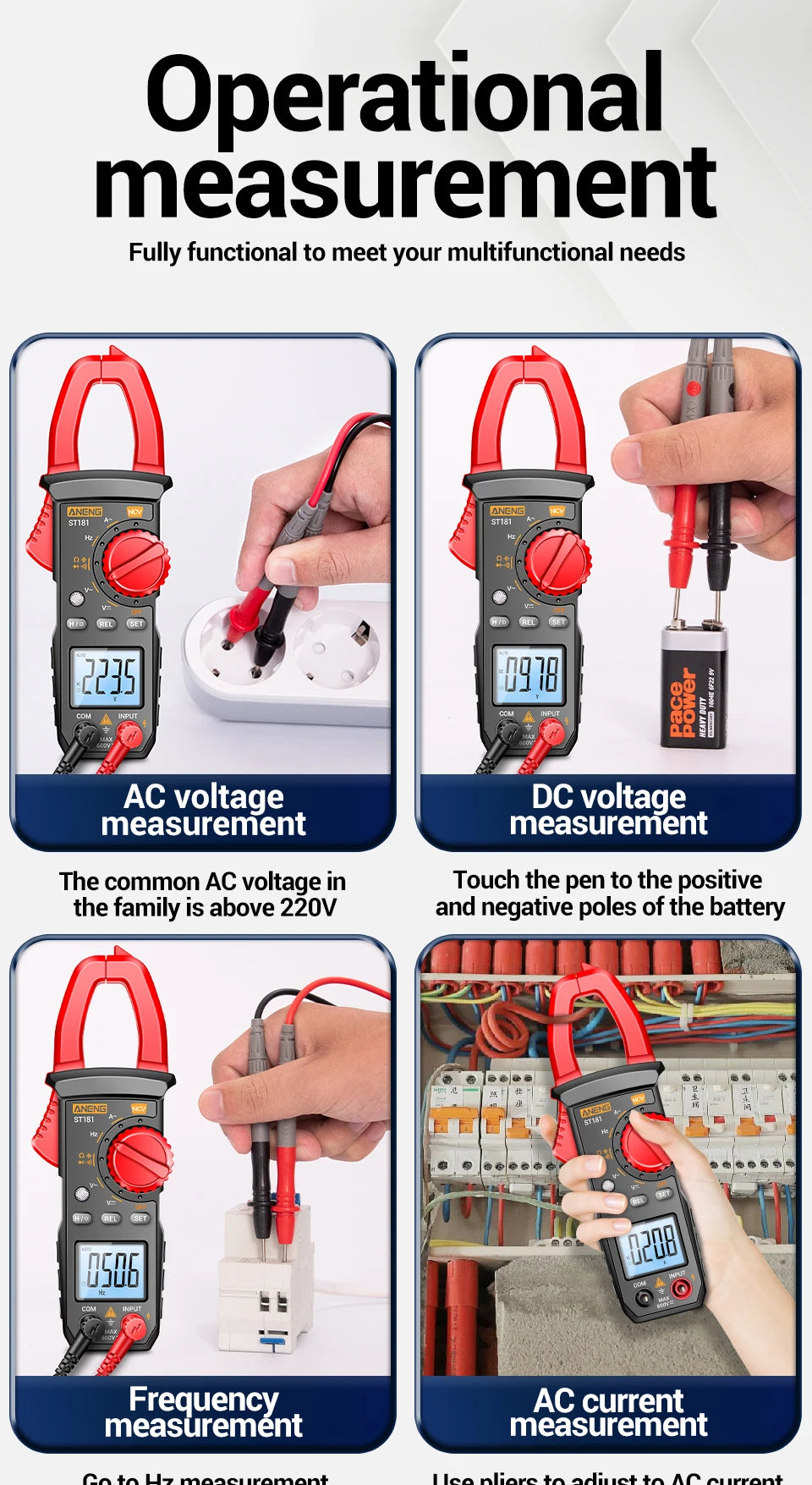

Can measure AC/DC voltage, AC current, resistance and test continuity.
Manual select measurement function and range.
Overload protection for the whole measurement range.

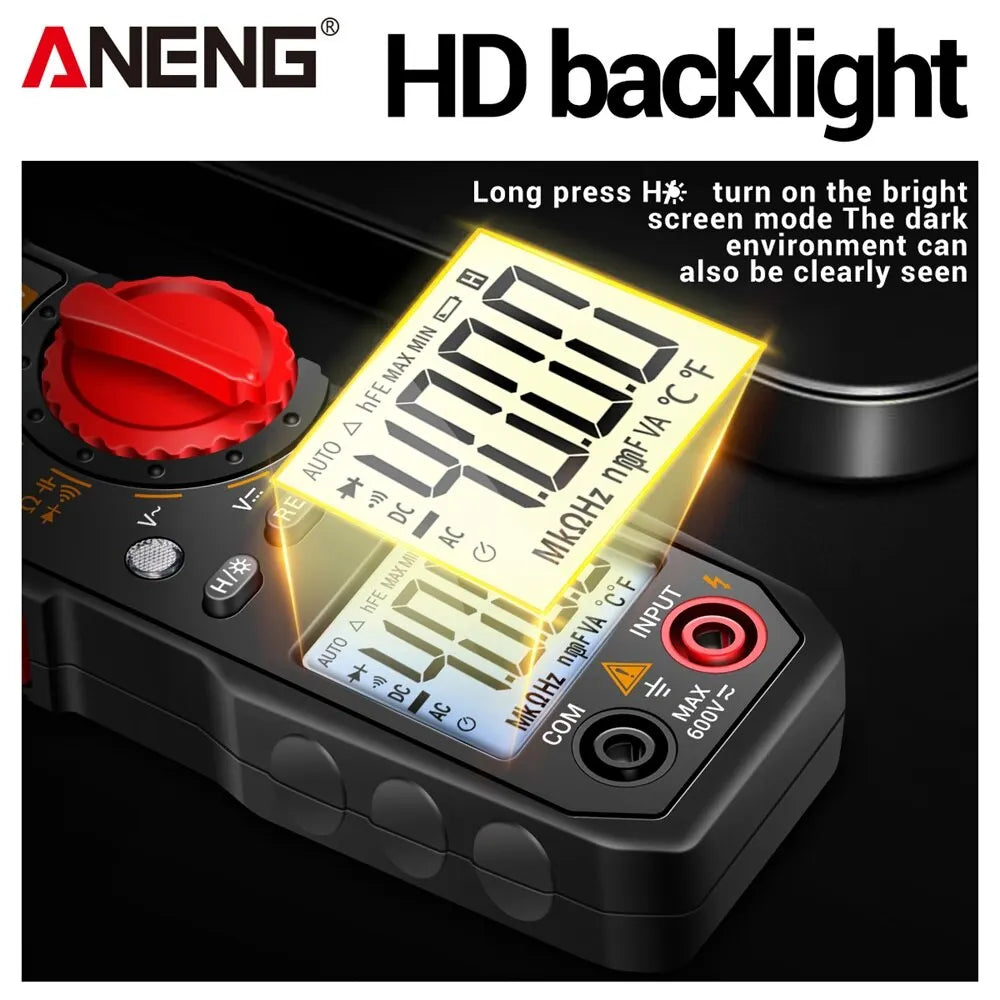

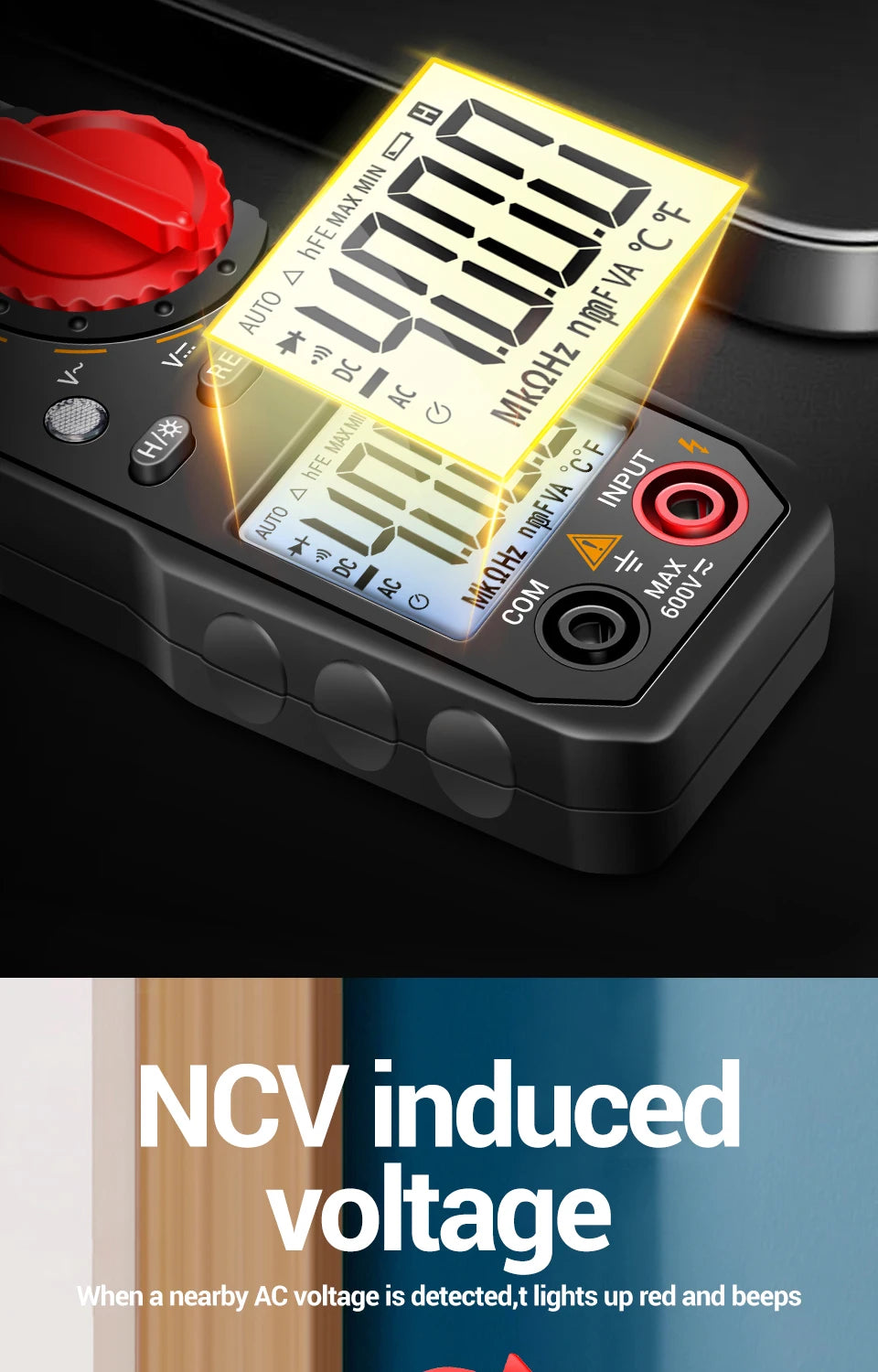

LCD display with backlight, convenient to operate and read.
Data hold function, low battery indication, auto power off.
Suitable for electrical equipment testing and maintenance.
Specifications:
Model |
ST181 |
Display |
4000 counts |
Range |
Accuracy |
|
AC voltage |
4V/40V/400V/600V |
±(1.5%+3) |
DC voltage |
400mV/4V/40V/400V/600V |
±(1.0%+3) |
Resistance |
400/4K/40K/400K/4M OMH |
±(1.2%+3) |
40M OMH |
±(1.5%+5) |
|

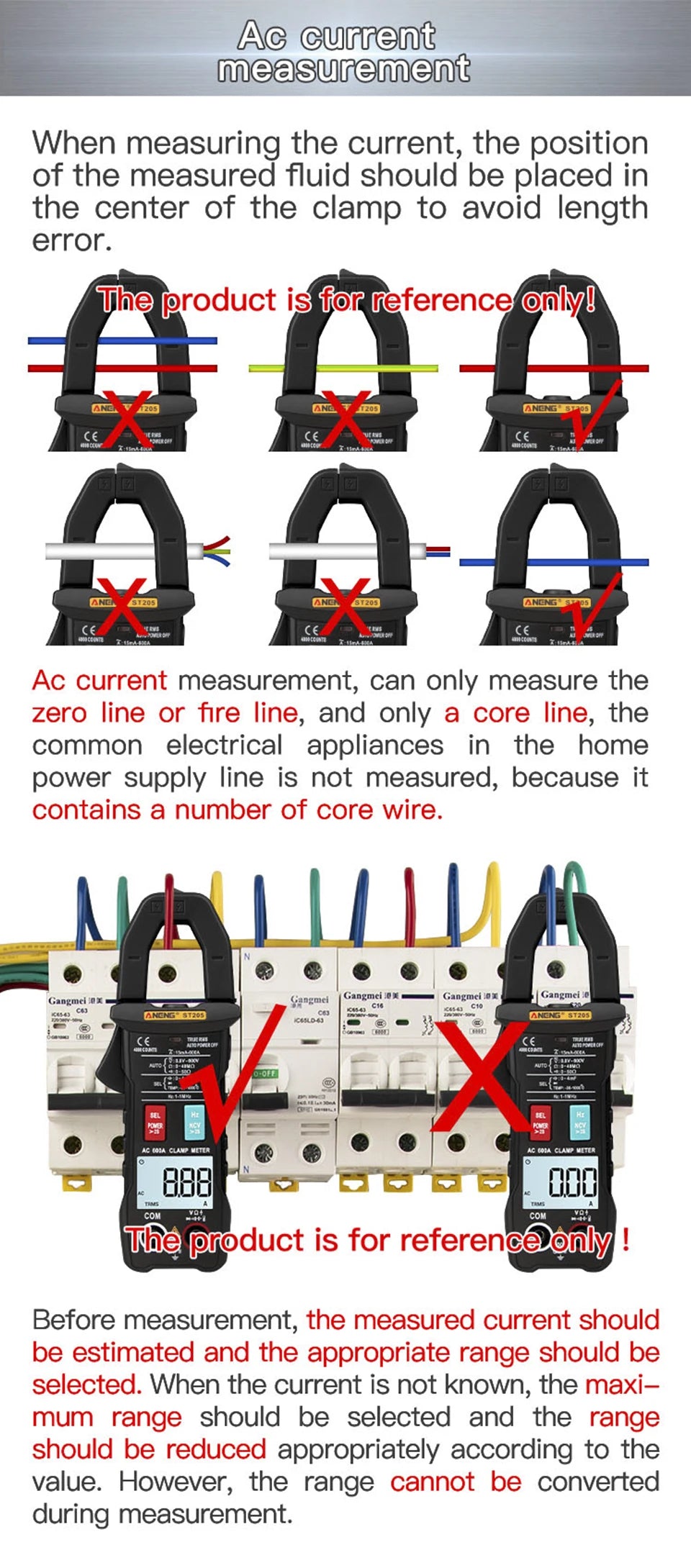

AC current |
40A/400A |
±(2.5%+3) |
Frequency |
10Hz~400kHz |
±(1.0%+5) |
400kHz~4MHz |
±(2.0%+5) |
|
Capacitance |
1nF~4uF |
±(2.5%+10) |
4uF~400uF |
±(4.0%+20) |
|
4mF |
±(5.0%+30) |
|
Working temperature |
18 °C to 28 °C |
Package List:

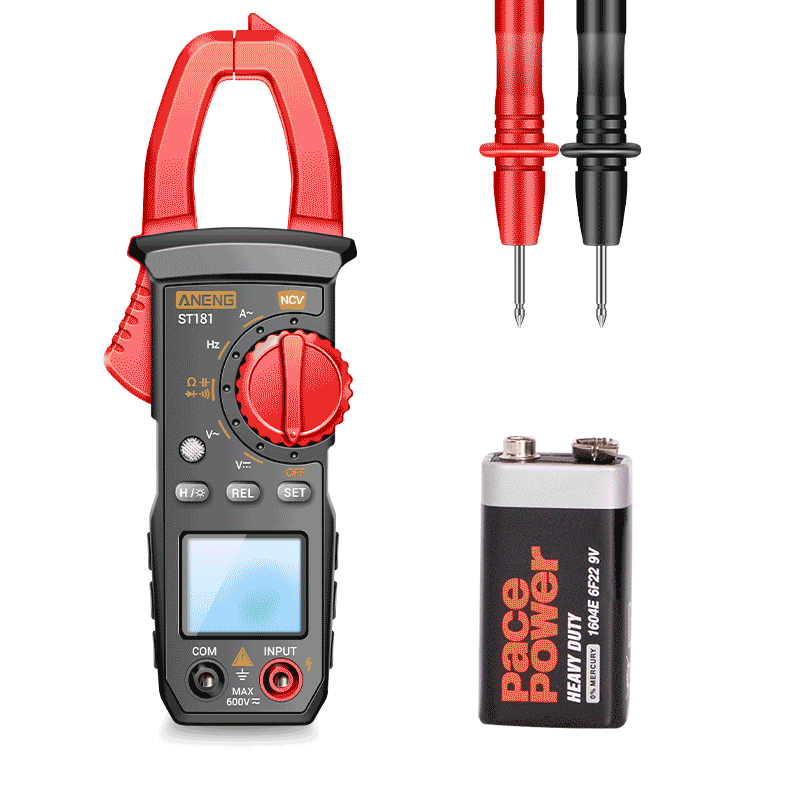

1 * ANENG ST181 Clamp meter meter
1 * Black packing bag
2 * Test Probes
1 * User Manual
instruction manual at the end.
